Tianshui Huayuan Machinery Technology Co.,Ltd
+8613809387113
info@hykj.com
Model: SWG-600 / SWG-450 Production capacity: 200-350kg/h, 150-300kg/h Material: stainless steel Application: Pharmaceutical, food and chemical industry
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
Model: GHLS-1S Production capacity: 50-350kg/h Material: stainless steel Application: Pharmaceutical industry
Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-10A Productivity: 2~5kg/h Production specification: ¢2~¢10mm Material: stainless steel Application: herbal pill or pellet producing
International distributors seeking a competitive edge can access the automatic herbal pill machine wholesales in china network to expand their market footprint. This channel offers harmonized specifications, intelligent controls, and consolidated shipping to streamline inventory management. Supported by a globally trusted heritage brand, dealers can confidently supply GMP-compliant, high-performance equipment to diverse regional clients.
For continuous, high‑volume production, the automatic suppository production line B2B platform delivers the robust reliability that contract manufacturers require. Integrating advanced thermal control and automated sealing, these systems guarantee batch-to-batch consistency while minimizing downtime. Backed by nearly three decades of manufacturing heritage, Huayuan empowers global enterprises to scale their operations seamlessly without compromising GMP compliance.
International distributors can build reliable portfolios by partnering through the suppository shell machine factory direct channel, which removes intermediaries and gives direct access to Huayuan’s engineering team. This model enables tailored mold geometries, custom control interfaces, and comprehensive validation documentation. Backed by decades of experience, dealers can offer fully supported equipment that meets diverse regional standards.
International distributors looking to equip multiple client facilities will find comprehensive high pressure sterilizer wholesales in china programs at the Xiamen event. By standardizing core components and streamlining volume production, the manufacturer ensures that every unit maintains identical operational tolerances. This scalable supply model allows global partners to confidently meet regional market demands with complete validation documentation.
International distributors can partner with Huayuan as a turnkey suppository production line company, offering clients a single point of accountability from design through commissioning. This integrated approach covers equipment, installation guidance, validation support, and operator training, reducing coordination burden for dealers and their end‑users. Backed by decades of engineering experience, Huayuan helps distributors deliver complete production solutions with full factory backing.
International distributors can strengthen their portfolios through a drying machine factory direct price arrangement with Huayuan, which removes intermediaries and provides direct access to engineering and production teams. This channel supports customised configurations, private labelling, and complete source documentation for regional market requirements. Backed by decades of manufacturing experience, dealers can offer reliable drying equipment with full factory accountability.
Pharmaceutical producers operating continuous sterile lines rely on a high pressure sterilizer manufacturer china with nearly three decades of pressure‑vessel expertise. Huayuan’s autoclaves deliver uniform steam distribution and precise temperature‑pressure regulation, ensuring repeatable cycles that meet strict GMP requirements. With over 1,000 installations worldwide, the company provides the stability and documentation that regulated manufacturing demands.
International distributors can strengthen their portfolios with the wholesale price autoclave machine china model, which combines volume supply with consistent tolerances across multiple units. Huayuan’s direct factory collaboration allows private labelling, tailored documentation, and responsive technical support. Backed by decades of engineering excellence, this channel helps dealers serve diverse regional markets with confidence.
International distributors can work with a suppository production line factory china direct to eliminate intermediaries and gain direct access to Huayuan’s engineering team. This model enables private labelling, tailored documentation, and rapid customisation for regional market requirements. Backed by decades of manufacturing excellence, partners can offer dependable machinery with full factory accountability.
Hospital compounding units and research pharmacies rely on Huayuan as a custom industrial drying machine factory, providing compact, easy‑to‑validate dryers for small‑batch and temperature‑sensitive preparations. Engineers tailor airflow, conveyor speed, and temperature zones to match delicate botanical or chemical materials. Full validation protocols and operator training help clinical sites maintain regulatory compliance and flexible workflows.

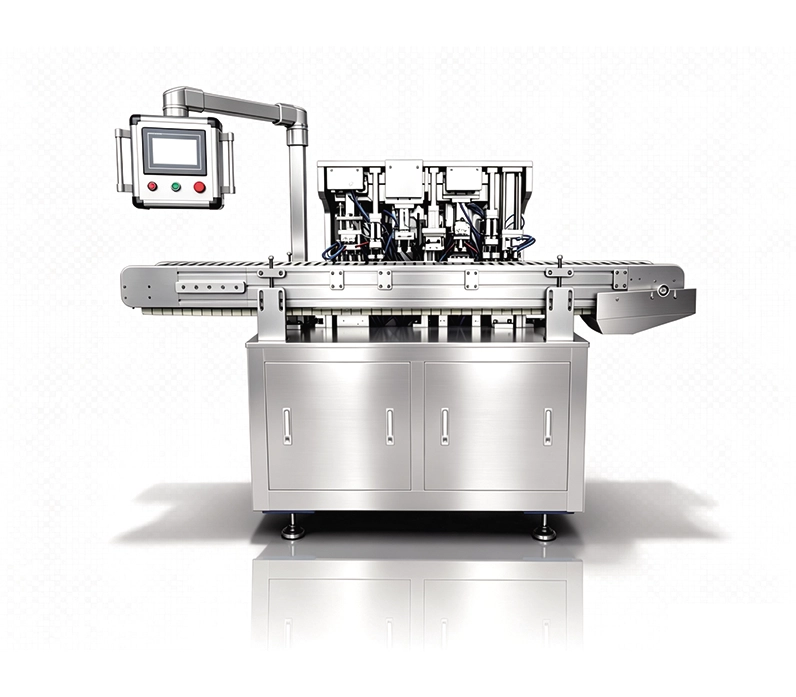

Automatic herbal pill machine wholesales in china—The upper and lower shells are fed onto the vibratory feeder plate via an electric vibrator, and through vibration and rotation of the brush rollers, they are neatly separated into multiple rows.
The lower shell vibratory plate is directly connected to the conveyor chain plate, and the lower shell conveying mechanism delivers the lower shells into the holes of the main conveyor mold strip.
Driven by a cylinder on the main conveyor mold strip, two sets of mechanical arms reciprocate back and forth, placing pills and upper shells respectively into molds containing lower shells.
The main conveyor mold strip is mounted on two conveyor chains, which move in step under servo motor drive. Along the direction of stepwise movement from right to left, above and below the mold strip, are installed: lower shell loading and positioning unit, pill pickup device, pill inspection device, upper shell pickup device, capping device, finished and semi-finished product discharge unit, and finished and semi-finished product sorting unit.
The main body of the machine is made of 304 stainless steel.
The whole machine adopts a linear design, and is controlled by "PLC + touch screen" system.
Wholesale price herbal pill making machine—The transmission part of the machine body is driven by high-precision servo electric cylinders, the conveyor chain is driven by a servo motor, other related actions are completed by FESTON high precision air cylinders, and the vibratory feeder is equipped with German "Erie" vibration source.
The relevant testing electrical components adopt German "SICK" photoelectric switches for precision detection.
The designed output of this machine is about 3000 pieces per hour.
The most prominent features of this machine are user-friendly humanized design and intelligent control.
| Model | KKZ9-5 |
| Production capacity | 3000-5000 pills/h |
| Power | 2.5kw |
| Voltage | 380V |
|
Compressed air pressure |
2000kg |
| Overall dimensions | 2825×1280×1600mm |
| Gross weight | 1300kg |
Pharmaceutical herbal pill maker factory china—This machine is mainly used in the packaging lines of traditional Chinese large honey pills.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
We are a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
