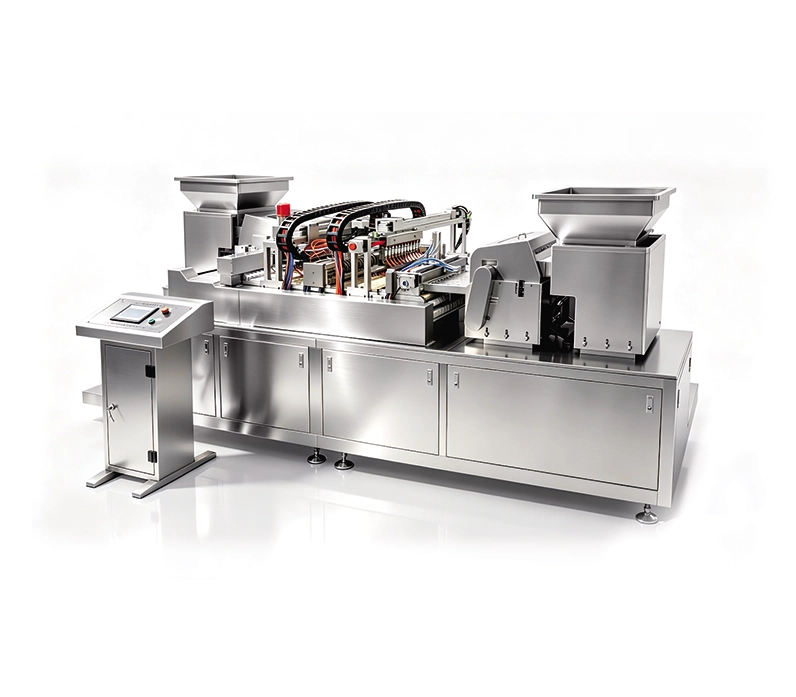

Structural characteristics:
The machine body is 304 material.
The machine linear design, using "PLC touch screen" control.
Automatic herbal pill machine wholesales in china—The transmission part is driven by high precision electric cylinder. The conveying chain is driven by servo motor, the other related actions are SMC high precision cylinder action, and the vibration feeder adopts the German "Eriez" vibration source.
The related detection of electrical components using the German "Sick" photoelectric switch precision detection.
The design output of this machine is about 20000 units per hour.
The characteristic of this machine is: humanized design, intelligent control.
Working principle：

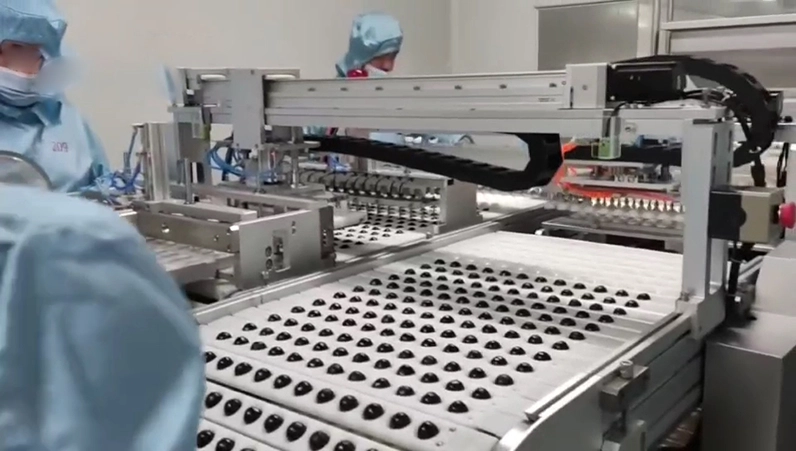

Wholesale price herbal pill making machine—Upper and lower shells are transported to the electric vibration plate by electric vibration feed, and the upper and lower shells are divided into several rows in an orderly manner through the removal of vibration source and rolling brush rotation.
Lower shell electric vibration plate is directly connected with the chain conveyor, and the lower shell is fed into the hole on the surface of the chain conveyor through the lower shell conveying mechanism.
A vacuum manipulator is installed between the main transmission chain conveyor and the automatic feeding mechanism of the distribution. The electric cylinder drives the vacuum manipulator to reciprocate between the main transmission and the disreibution mechanism. Two rows of 24 vacuum suckers are installed on the manipulator. Place the pill in a hole on the chain conveyor with a lower shell.
Main conveying template bar is installed on two conveying chains, which are driven by servo motor. The upper and lower parts of the template bar are arranged from right to left along the direction of step rotation: lower shell feeding and positioning mechanism, pills picking device, pill testing device, upper shell picking device, buckle shell device, finished and semi-finished product export device, finished and semi-finished product shunt device.
Product Specification
| Device name |
Automatic shell Sealing machine
|
Equipment model |
KKZ9-10 |
| Production capacity |
9000-11000 pills/h |
Equipment weight |
2500kg |
| Overall dimensions |
5300×1750×2300mm |
Dimensions for use and maintenance |
5000×3000×2600mm |
| The rated voltage |
380V 50Hz |
Equipment noise |
75db |
| The total power |
6kw |
Environmental humidity requirement |
50--85% |
| Rated current |
13A |
Environmental temperature requirement |
5-40℃ |
|
Compressed air pressure
|
≥0.6MPa |
Gas consumption |
0.6m³/min |
Application:
Pharmaceutical herbal pill maker factory china—This machine is mainly used in the packaging lines of traditional Chinese large honey pills.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
We are a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification |
▲ISO 9001:2015 Quality Management |
▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
