Tianshui Huayuan Machinery Technology Co.,Ltd
+8613809387113
info@hykj.com
Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Capacity: 3000~4000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
Capacity: 10000~13000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
International distributors will find Huayuan’s filling equipment highly competitive in both performance and acquisition cost, with the best price suppository filling machine offering a compelling balance of speed and precision that appeals to a wide range of end‑users. For dealers targeting emerging markets or price‑sensitive regions, the low price suppository filling machine provides an accessible entry point without sacrificing essential functions like automatic nozzle cleaning and fill‑weight monitoring. Partnering with Huayuan as a reputable factory China suppository filling machine source ensures consistent quality, flexible OEM options, and shorter lead times, backed by over 1,000 successful installations worldwide.
Beyond pharmaceuticals, Huayuan’s shell‑forming expertise extends to industries that mold edible casings, chemical capsules, or agricultural pellets, with a custom suppository shell making machine adapted to handle viscous pastes, waxes, or biodegradable polymers. Their OEM suppository shell machine supplier service enables these enterprises to brand equipment for their own niche markets, while Huayuan’s role as a factory China suppository shell machine manufacturer guarantees robust construction and corrosion‑resistant materials for abrasive or hygroscopic substances. Backed by three decades of cross‑sector experience and a commitment to smart, efficient production, Huayuan brings unmatched versatility and durability to every non‑pharmaceutical application as well.
Large pharmaceutical companies seeking turnkey solutions for high‑volume suppository production will find Huayuan an ideal partner, offering a custom automatic suppository production line that adapts to every formulation’s thermal and flow properties. For those wishing to market equipment under their own brand, Huayuan provides a full OEM automatic suppository production line service, including tailored control interfaces and certification packages. As a trusted automatic suppository line supplier China, Huayuan combines three decades of engineering expertise with advanced servo‑driven filling and sealing modules, ensuring batch‑to‑batch consistency and minimal downtime even in 24/7 operations.
International dealers and importers benefit from partnering with Huayuan, a reputable herbal pill making machine manufacturer China whose robust construction and energy‑efficient drives lower long‑term maintenance costs. The same facility operates as an automatic herbal pill making machine factory China, delivering turnkey systems with internationally recognized safety and performance certifications. With the added advantage of a custom herbal pill making machine China, distributors can offer local clients modified die sizes, polishing attachments, or PLC interfaces, making Huayuan a versatile and dependable brand that enhances any machinery portfolio.
Working Principle:

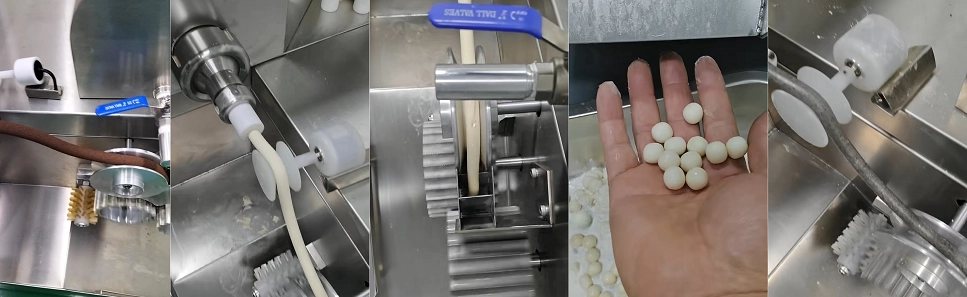

Feed the powder of the ingredients (such as: Water, honey, extract liguid or sugar liquid) are mixed and stirred evenly in mixing machine, and the medicine is extruded the strips by the pill making machine to deliver the strips, and then smoothly enter the for cutter roller along the guide wheel to quickly make pills.

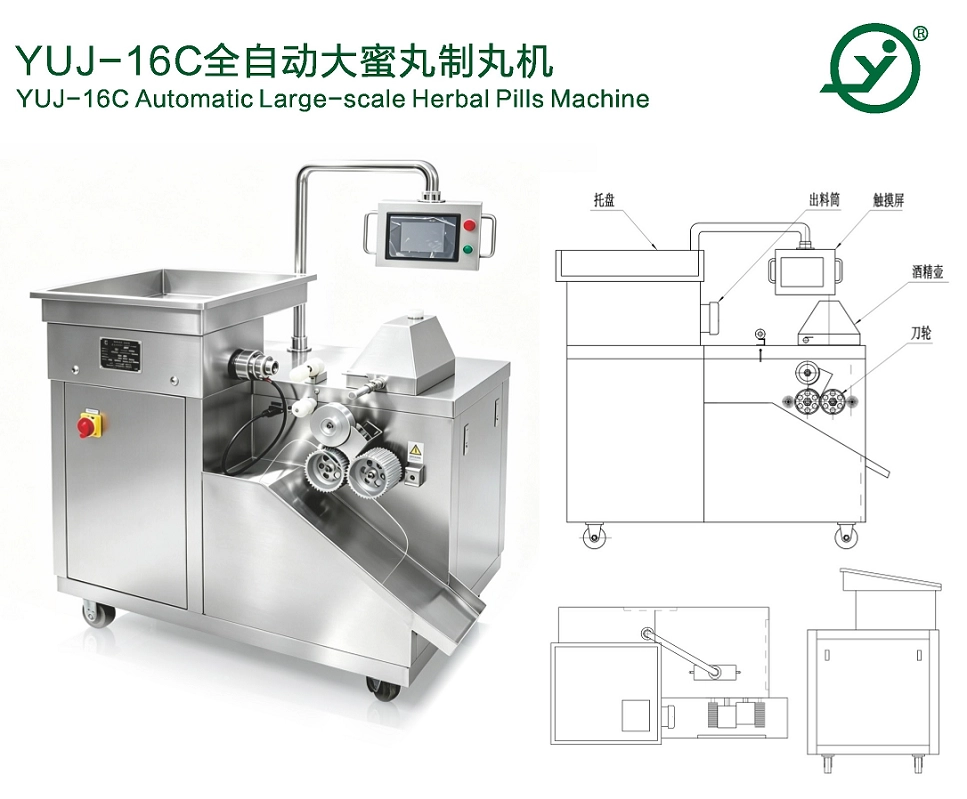

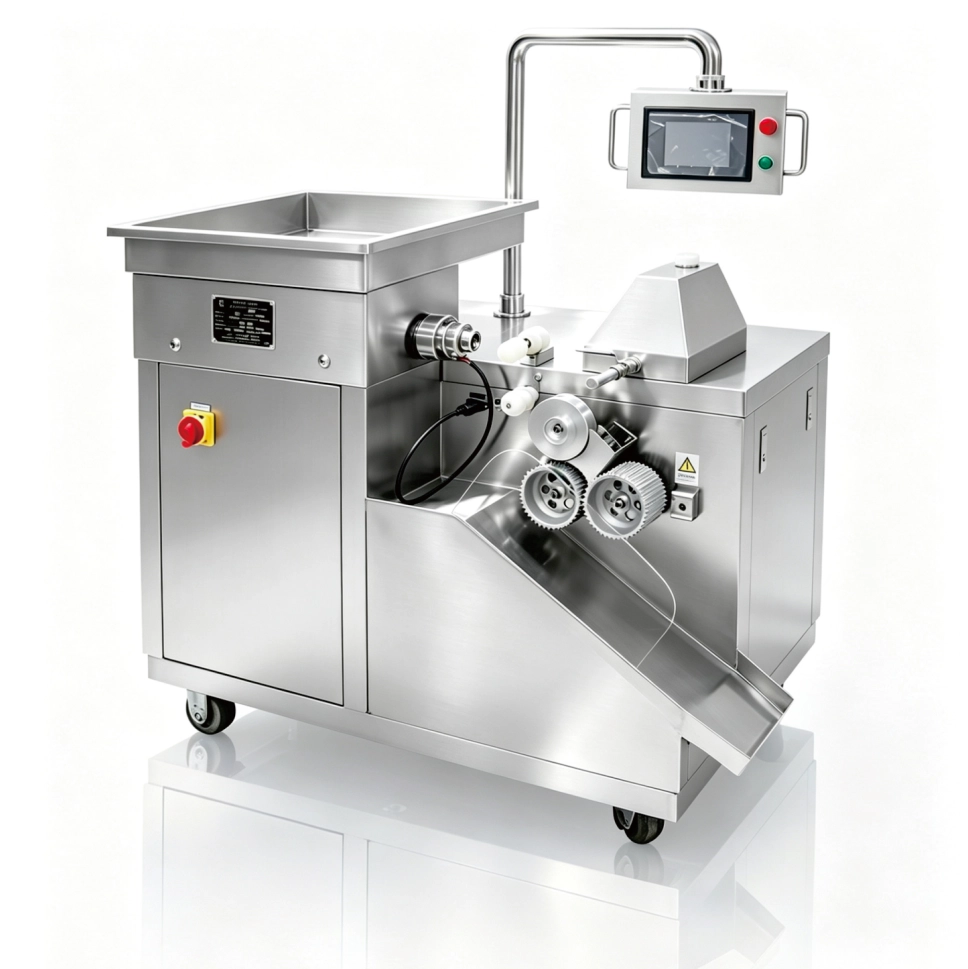

| Model | YUJ-16C |
| Production specification | 1~6g (¢3~¢18mm) |
| Production efficiency | 5~90kg/h |
| Total motor power | 3.7kw |
| Power supply | 380V 50Hz |
| Weight | 500kg |
| Overall dimensions | 1300×750×1700mm |
| Remark | Without touch screen |

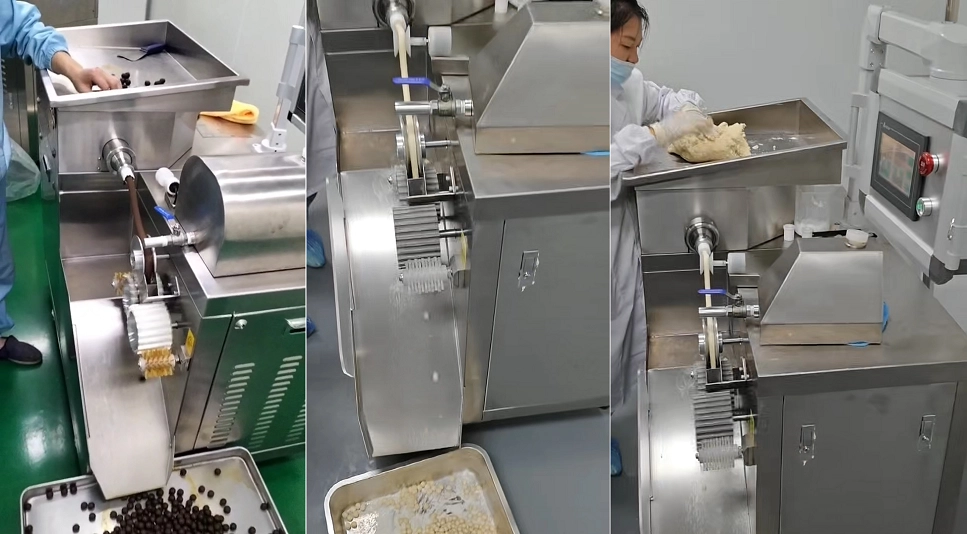

As a leading herbal pill making machine manufacturer China, we offer equipment specifically designed for small pharmaceutical factories and hospital preparation rooms. It adds the production function of Chinese herbal pills on the basis of the original 16A type advantages, realizes one machine multipurpose, and saves the factory, easy to operate. It can also add heating device or cooling device to suitable for the requirement of cooling or heating in the process of making pills, making the processing process more stable and smooth, and pills more uniform standard.
This model is small capacity equipment in Chinese medicine pills, mainly used to produce Chinese herbal medicine pills, diameter 1 g-6g or 3-18 mm.lt is suitable for small batch and multi-variety production.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
Tianshui Huayuan Shangyu Technology Co., Ltd. is a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
