Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Capacity: 3000~4000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
Capacity: 10000~13000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
International distributors will find Huayuan’s filling equipment highly competitive in both performance and acquisition cost, with the best price suppository filling machine offering a compelling balance of speed and precision that appeals to a wide range of end‑users. For dealers targeting emerging markets or price‑sensitive regions, the low price suppository filling machine provides an accessible entry point without sacrificing essential functions like automatic nozzle cleaning and fill‑weight monitoring. Partnering with Huayuan as a reputable factory China suppository filling machine source ensures consistent quality, flexible OEM options, and shorter lead times, backed by over 1,000 successful installations worldwide.
Beyond pharmaceuticals, Huayuan’s shell‑forming expertise extends to industries that mold edible casings, chemical capsules, or agricultural pellets, with a custom suppository shell making machine adapted to handle viscous pastes, waxes, or biodegradable polymers. Their OEM suppository shell machine supplier service enables these enterprises to brand equipment for their own niche markets, while Huayuan’s role as a factory China suppository shell machine manufacturer guarantees robust construction and corrosion‑resistant materials for abrasive or hygroscopic substances. Backed by three decades of cross‑sector experience and a commitment to smart, efficient production, Huayuan brings unmatched versatility and durability to every non‑pharmaceutical application as well.
Large pharmaceutical companies seeking turnkey solutions for high‑volume suppository production will find Huayuan an ideal partner, offering a custom automatic suppository production line that adapts to every formulation’s thermal and flow properties. For those wishing to market equipment under their own brand, Huayuan provides a full OEM automatic suppository production line service, including tailored control interfaces and certification packages. As a trusted automatic suppository line supplier China, Huayuan combines three decades of engineering expertise with advanced servo‑driven filling and sealing modules, ensuring batch‑to‑batch consistency and minimal downtime even in 24/7 operations.
International dealers and importers benefit from partnering with Huayuan, a reputable herbal pill making machine manufacturer China whose robust construction and energy‑efficient drives lower long‑term maintenance costs. The same facility operates as an automatic herbal pill making machine factory China, delivering turnkey systems with internationally recognized safety and performance certifications. With the added advantage of a custom herbal pill making machine China, distributors can offer local clients modified die sizes, polishing attachments, or PLC interfaces, making Huayuan a versatile and dependable brand that enhances any machinery portfolio.

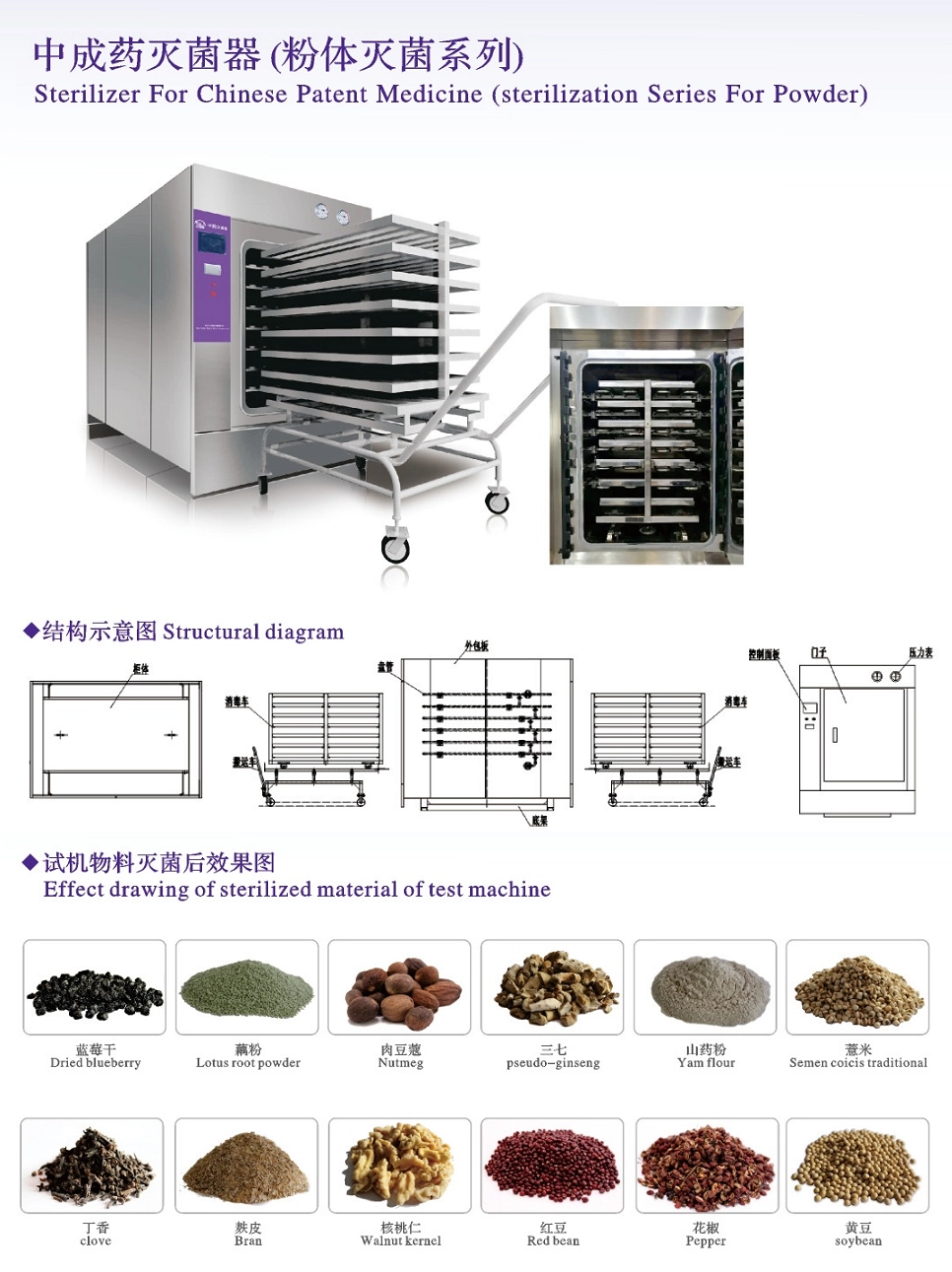

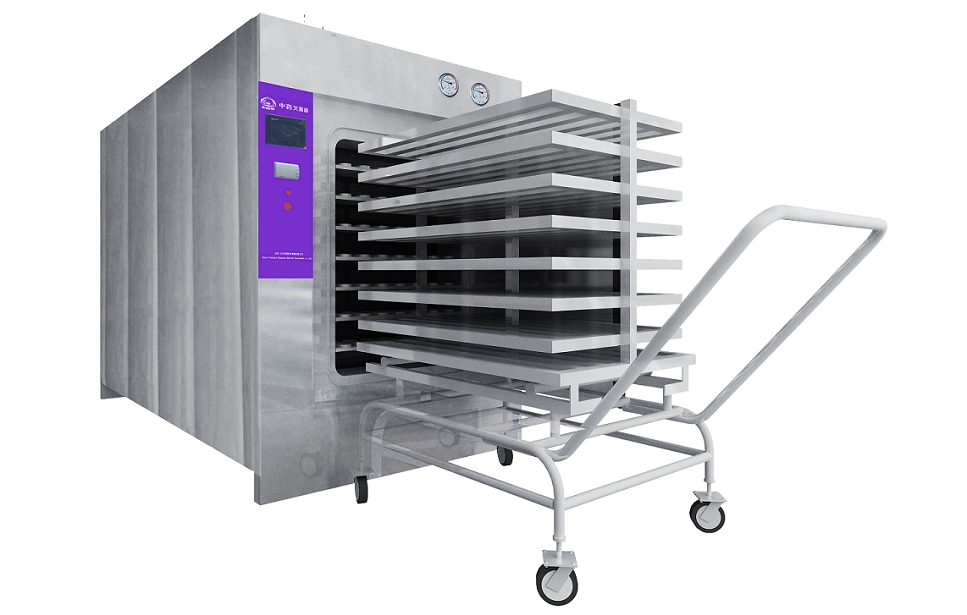

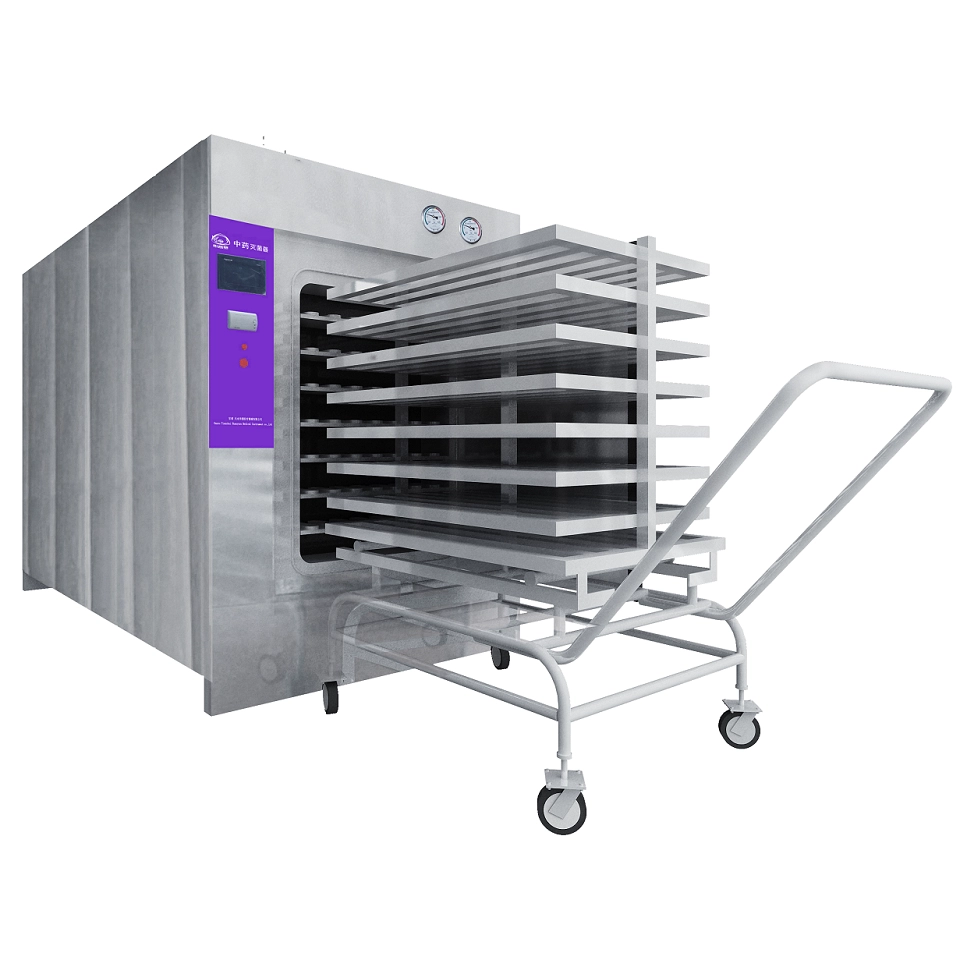

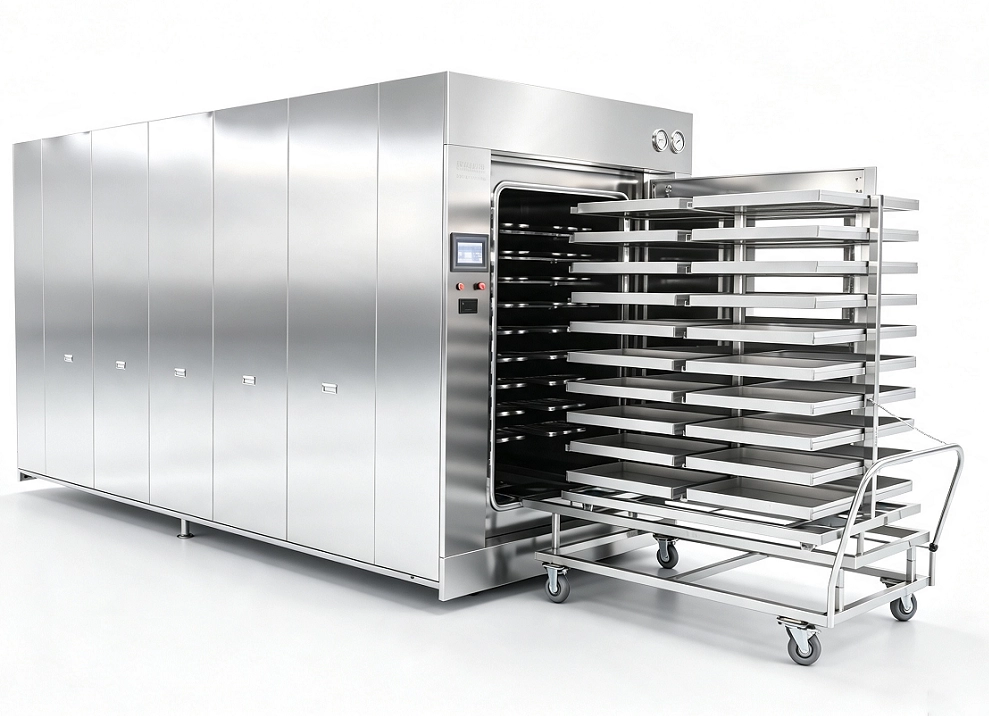

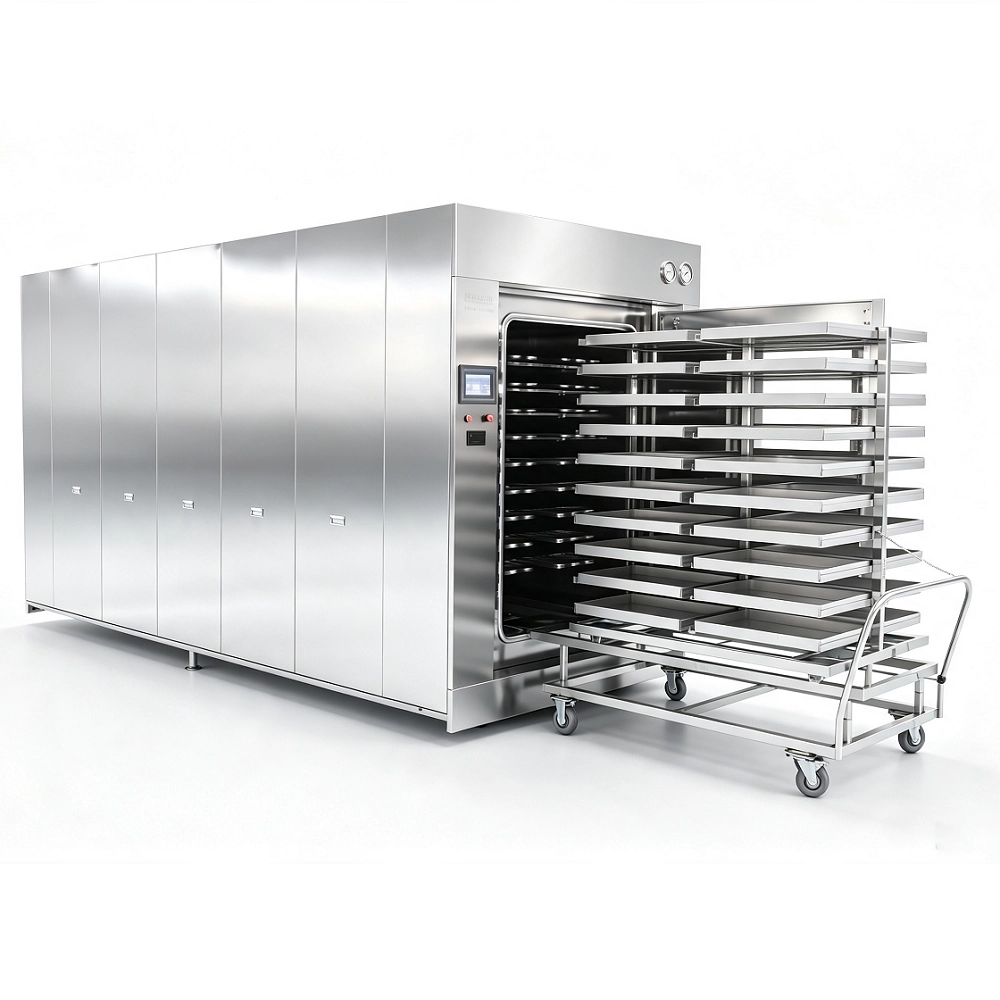

With pure saturated steam as the sterilizing medium, the sterilizer is suitable for sterilizing and drying Chinese medicine materials, decoction pieces, extracts and granule powder. It is one of the ideal sterilizing equipment for pharmaceutical enterprises to sterilize and dry the raw materials of Chinese patent medicine products containing biological original powder.
| 1 | Model | YXQ.WF32.750×1050-D |
| 2 | Volume (m³） | 1.2 |
| 3 | Design pressure (Mpa) | 0.245 |
| 4 | Working pressure(Mpa) | 0.23 |
| 5 | Design temperature(℃) | 139 |
| 6 | The maximum temperature(℃) | 134 |
| 7 | Steam source pressure(Mpa) | 0.3-0.6 |
| 8 | Control source | AC220/50HZ/3A |
| 9 | Power source | AC380V/50Hz/20A |
| 10 | Power dissipation(Kw) | 4.5 |
| 11 | Water cycle consumption(kg/time) | 300 |
| 12 | Steam cycle consumption(kg/time) | 50 |
| 13 | Water Resources stress(Mpa) | 0.2-0.4 |
| 14 | Compressed air pressure(Mpa) | 0.4-0.6 |
| 15 | Trip duration time(min) | ＜70 |
| 16 | loading capacity(Kg) | 100~150 |
| 17 | Dimensions of the sterilization tray（L×W×H)）mm | 630×598×40 |
| 18 | Dimensions of the sterilization vehicle（L×W×H)）mm | 1420×640×930 |
| 19 | Dimensions of the carry vehicle（L×W×H)）mm | 1793×755×934 |
| 20 | Dimensions of the sterilization chamber（L×W×H)）mm | 1500×750×1050 |
| 21 | Overall dimensions（L×W×H）mm | 1820×1515×2040 |
| 22 | Net weight（kg） | 2000 |
Advantages:
The sterilization temperature setting value is between 80 and 134 degrees Celsius, with a wide range of adjustment.
The main body is of a horizontal rectangular jacket structure. The inner tank is made of high-quality 316L stainless steel material, with a polished surface for easy cleaning, corrosion resistance, and durability. The manufacturing complies with the strict quality and safety standards of Class I pressure vessel products, and is equipped with standard GMP verification interfaces.
The sterilization room is equipped with multiple layers of moisture-proof tubes, which can effectively prevent the powder from caking after drying.
The sterilization chamber is preheated simultaneously with the jacket in an airtight state, which not only facilitates the removal of cold air but also shortens the preparation period for the equipment operation.
The multi-layer compartmentalized packaging of materials can not only make full use of the space within the sterilization chamber, but also ensure the sterilization and drying effects.
Using a liquid ring vacuum pump, the air in the sterilization chamber is forcibly extracted multiple times, and saturated steam is injected multiple times as well. This ensures a thorough sterilization process with a short duration and excellent drying effect.
The sealed door adopts a ratchet meshing structure, an electric lifting switch, compressed air reverse sealing, and is equipped with a safety interlock device, a manual opening device, and a double-door interlock device. The door body is safe and reliable, flexible and labor-saving, and easy to operate.
The double-door seal strictly isolates the contaminated area from the sterile area, effectively preventing cross-contamination between the two zones.
The upper position adopts a touch-type human-machine interface, presenting the working status clearly and facilitating operation; the lower position uses an industrial programmable controller, which is highly functional and enables automatic control of the entire working process, ensuring accuracy and reliability, and also records and prints the required parameters and operation records in real time.
With the function of automatic fault detection and alarm notification.
The main components are all made from internationally (domestically) renowned brands. The most optimized configuration ensures the safety, reliability and operability of the sterilization equipment.
Application:
It is suitable for sterilization and drying treatment of herbal materials, decoction pieces, extracts and powder granules. Such as medicine powder, coffee bean, spice, grain fruit slices ect.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
Tianshui Huayuan Shangyu Technology Co., Ltd. is a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |

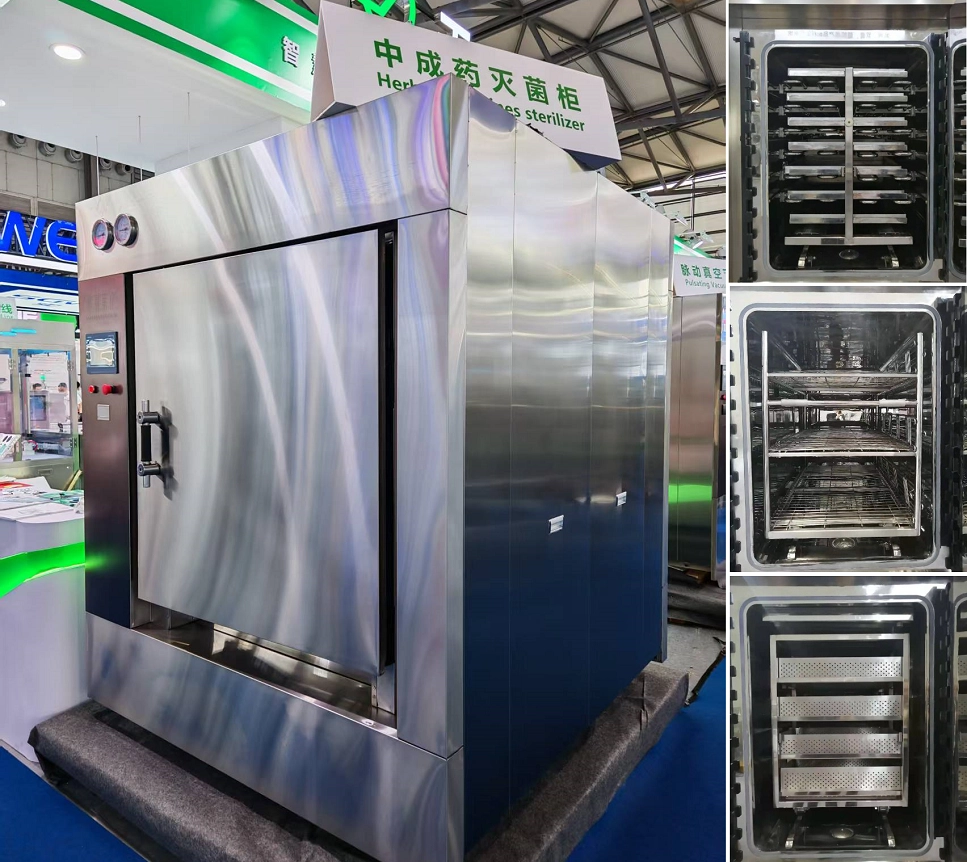

Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
