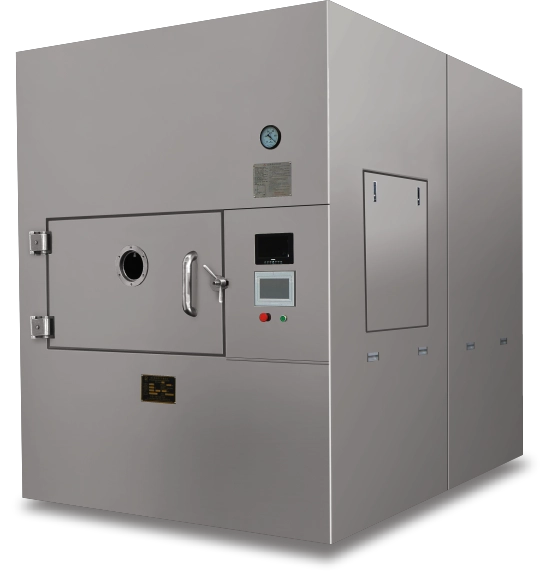

Factory China Industrial Microwave Oven Vacuum Drying Equipment
Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
-
Automatic Herbal Pill Medium Honey Pill Machine Wholesales In China
Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
-
Herbal Pill Making Machine Factory Direct
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
-
Automatic Suppository Production Line Manufacturer China
Capacity: 3000~4000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
-
Industrial Continuous Drying Equipment Microwave Tunnel Dryer
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
-
Best Price 1200L Medical Sterilization Equipment
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
-
Pulsating Vacuum Sterilizer Manufacturer China
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
-
High Speed Fully Automatic Suppository Filling Machine Production Line
Capacity: 10000~13000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
-
herbal pill making machine manufacturer china
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
News
Huayuan Combines Value and Reliability in Suppository Filling Technology
2026-06-22 17:58:30
International distributors will find Huayuan’s filling equipment highly competitive in both performance and acquisition cost, with the best price suppository filling machine offering a compelling balance of speed and precision that appeals to a wide range of end‑users. For dealers targeting emerging markets or price‑sensitive regions, the low price suppository filling machine provides an accessible entry point without sacrificing essential functions like automatic nozzle cleaning and fill‑weight monitoring. Partnering with Huayuan as a reputable factory China suppository filling machine source ensures consistent quality, flexible OEM options, and shorter lead times, backed by over 1,000 successful installations worldwide.
Huayuan Delivers Precision and Versatility in Suppository Shell Manufacturing
2026-06-22 17:39:37
Beyond pharmaceuticals, Huayuan’s shell‑forming expertise extends to industries that mold edible casings, chemical capsules, or agricultural pellets, with a custom suppository shell making machine adapted to handle viscous pastes, waxes, or biodegradable polymers. Their OEM suppository shell machine supplier service enables these enterprises to brand equipment for their own niche markets, while Huayuan’s role as a factory China suppository shell machine manufacturer guarantees robust construction and corrosion‑resistant materials for abrasive or hygroscopic substances. Backed by three decades of cross‑sector experience and a commitment to smart, efficient production, Huayuan brings unmatched versatility and durability to every non‑pharmaceutical application as well.
Huayuan’s Advanced Suppository Production Solutions Empower Global Pharmaceutical Manufacturers
2026-06-17 17:47:27
Large pharmaceutical companies seeking turnkey solutions for high‑volume suppository production will find Huayuan an ideal partner, offering a custom automatic suppository production line that adapts to every formulation’s thermal and flow properties. For those wishing to market equipment under their own brand, Huayuan provides a full OEM automatic suppository production line service, including tailored control interfaces and certification packages. As a trusted automatic suppository line supplier China, Huayuan combines three decades of engineering expertise with advanced servo‑driven filling and sealing modules, ensuring batch‑to‑batch consistency and minimal downtime even in 24/7 operations.
Decades of Excellence: Huayuan Reinforces Its Leadership in Pharmaceutical Machinery Innovation
2026-06-16 17:58:20
International dealers and importers benefit from partnering with Huayuan, a reputable herbal pill making machine manufacturer China whose robust construction and energy‑efficient drives lower long‑term maintenance costs. The same facility operates as an automatic herbal pill making machine factory China, delivering turnkey systems with internationally recognized safety and performance certifications. With the added advantage of a custom herbal pill making machine China, distributors can offer local clients modified die sizes, polishing attachments, or PLC interfaces, making Huayuan a versatile and dependable brand that enhances any machinery portfolio.

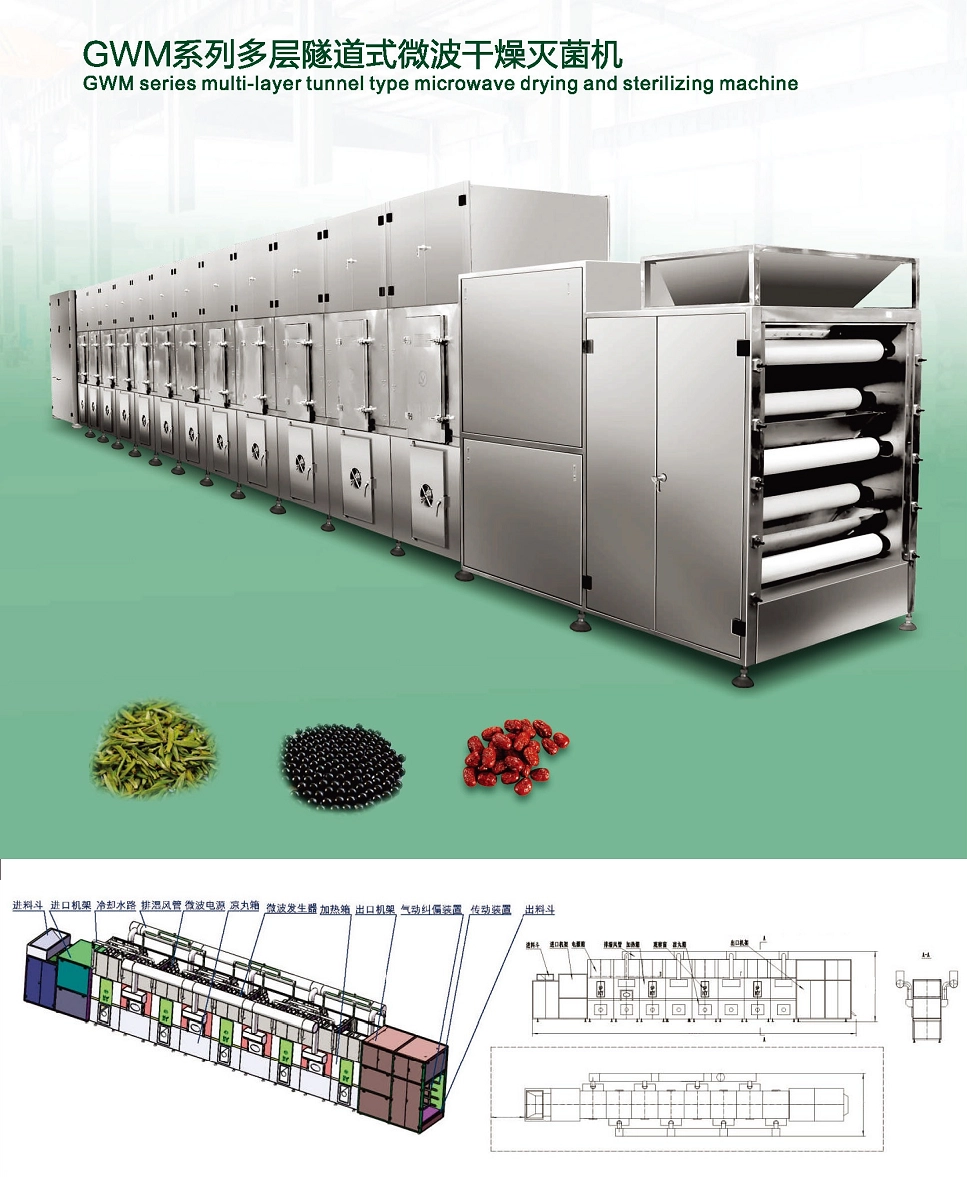

Industrial Continuous Drying Equipment Microwave Tunnel Dryer
- Type: tunnel drying machine
- Microwave Power: 15~120kw
- Microwave Frequency: 2450±50MHz
- Supply Voltage: 380v
- Drying method: microwave
- Transport package: wooden case
- Use: drying wet materials
- Control system: PLC
- Product Details
Product Structure:

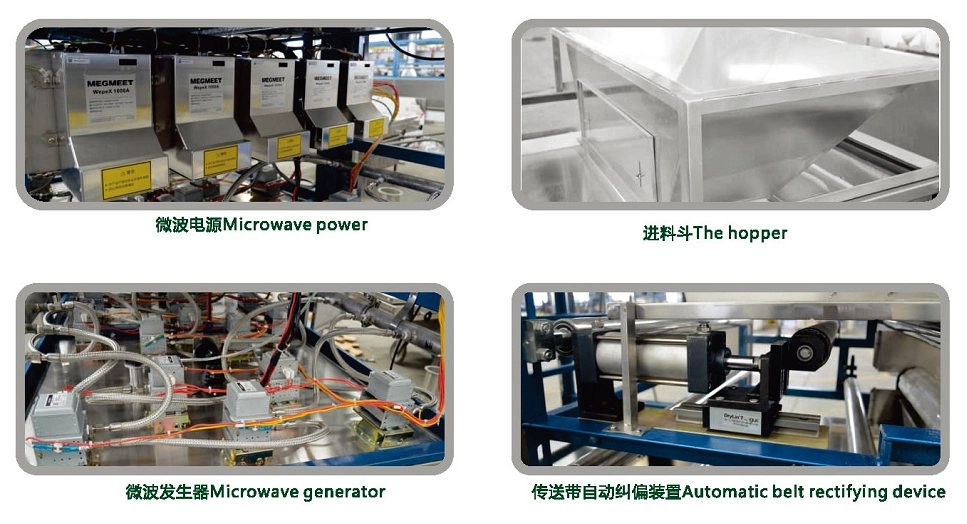

The equipment is mainly composed of microwave heater, microwave σenerator, microwave suppressor, mechanical transmission mechanism, exhaust and humidity system and automatic control system.
Main Purpose:
The tunnel type microwave dryer is a new type of drying equipment with high production efficiency and low operation cost. It is also an energy-saving equipment with high efficiency and environmental protection. While drying, it also has the function of sterilization. It is one of the indispensable core equipment in the production line of Chinese traditional medicine pills, food, agricultural and sideline products. The equipment can be equipped with three-layer or five layer transmission structure to ensure better drying effect. At the same time, compared with the drying equipment with the same power or output, the floor area is small, the use of manpower is reduced by more than 80%, and the efficiency is multiplied. It is also widely used in wood, paper, tobacco, chemical industry, building materials and otherfields.
Product Specification
| Model | Working Frequency (MHz) | Output Power (kw) | Microwave Leakage (MW/cm²) | External Dimension (cm) (LxWxH) Adjustable | Dehydrated ability approximately(kg/kw.h) | Productivity of Sterilization(kg/h) |
| GWM-15A/B | 2450±50 | 15 | ≤5 | 980x120x160 | 0.8-1.0 | 150-180 |
| GWM-20A/B | 2450±50 | 20 | ≤5 | 1240x120x160 | 0.8-1.0 | 200-250 |
| GWM-30A/B | 2450±50 | 30 | ≤5 | 1460x120x160 | 0.8-1.0 | 300-400 |
| GWM-50A/B | 2450±50 | 50 | ≤5 | 2050x120x160 | 0.8-1.0 | 500-800 |
| GWM-50-80A/B | 2450±50 | 50-80 | ≤5 | 3000x120x160 | 600-1000 | |
| GWM7-80A/B Vertical Tunnel Microwave Sterilizing & Drying Machine | 2450±50 | 7-80 | ≤5 | (900-3000)x120x180 | 0.8-1.0 | 60-1000 |
| GWM7-80A/B Tracked Tunnel Microwave Sterilizing & Drying Machine | 2450±50 | 7-80 | ≤5 | (900-3000)x120x180 | 0.8-1.0 | 60-1000 |
Advantages:
The main parts of the equipment are made of SS304 stainless steel, which conforms to the GMP standard of pharmaceutical equipment. The whole machine is modular design, easy to clean and easy to operate.
It is very suitable for connecting with front and rear equipment to realize efficient linkage production.
The microwave heater is composed of several heating boxes, each unit is composed of several magnetrons, which is characterized by flexible power selection and simple operation.
The transmission belt is made of polytetrafluoroethylene, safe and nontoxic, stepless frequency conversion and automatic speed regulation, stable operation.
PLC automatic program control system realizes automatic monitoring alarm and data storage and calling.
It has the automatic protection function of furnace door opening. When the furnace door is opened by mistake, the equipment will automatically cut off the microwave power supply, or when the furnace door is nc:closed properly, the microwave power supply cannot be started.
It has the automatic protection function of furnace door opening. When the furnace door is opened by mistake, the equipment will automatically cut off the microwave power supply, or when the furnace door is nc:closed properly, the microwave power supply cannot be started.
Application:
It is used for herbal pill, tablet, powder, food, fruits, vegetables, cereal, spice, wood, paper, tobacco, ore, chemical industry ect.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
Tianshui Huayuan Shangyu Technology Co., Ltd. is a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 60 working days.
Urgent Service: 45 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
FAQs
We have more than 30 years in pharmaceutical equipment industry, we are a professional manufacturer and have a big factory, workers are more than 100 peoples.
The machine will have one year warranty which will begin from the customer receive the machines. During the warranty year we will replace parts which are damaged (except man-make damage) to you.
wooden case.
You can install it according to instruction book as for simple machine. nFor complicated machine, we can send our engineer abroad to adjust machine and train workers. Customer should be afford the visa, two ways tickets, accommodation and labor charge
Generally, you will find the solutions in the manual. But if still can not solve the problem, please contact with the after-sale service department or the sales person by email or phone. We will reply you within 24 hours.
TT and irrevocable 100% LC are acceptable. If pay by TT, 30% down payment before producing, 70% balance pay before arranging shipping.
Normally delivery time is about 30-45 days after receiving down payment for one set packing system, depend on customer's requirement.
