Custom industrial pill drum drying machine factory

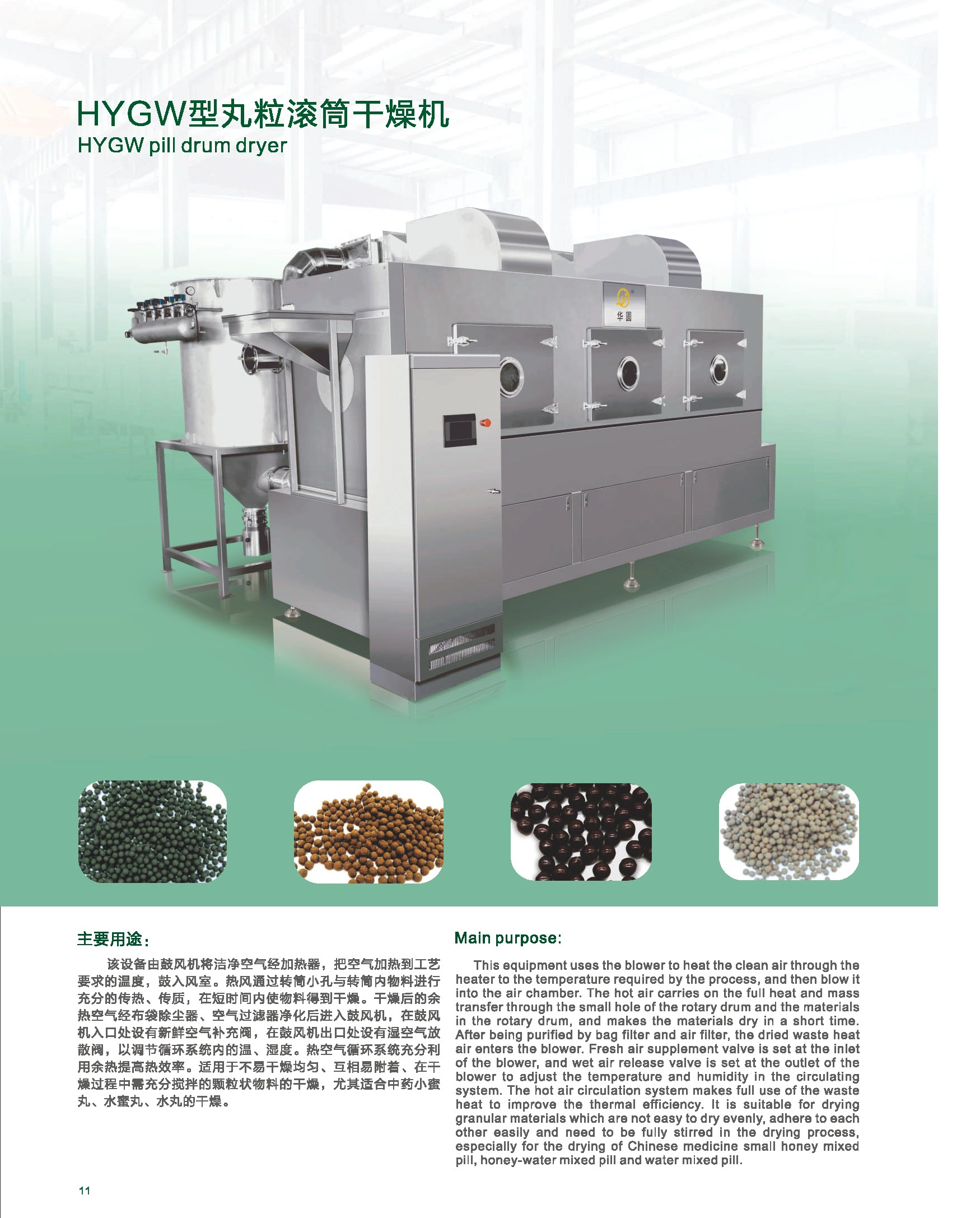

Main purpose:

Oem drying machine supplier china—This equipment uses the blower to heat the clean air through the heater to the temperature required by the process, and then blow it into the air chamber. The hot air carries on the full heat and mass transfer through the small hole of the rotary drum and the materials in the rotary drum, and makes the materials dry in a short time. After being purified by bag filter and air filter, the dried waste heat air enters the blower. Fresh air supplement valve is set at the inlet of the blower, and wet air release valve is set at the outlet of the blower to adjust the temperature and humidity in the circulating system. The hot air circulation system makes full use of the waste heat to improve the thermal efficiency. It is suitable for drying granular materials which are not easy to dry evenly, adhere to each other easily and need to be fully stirred in the drying process, especially for the drying of herbal pills, food balls and chemical balls.

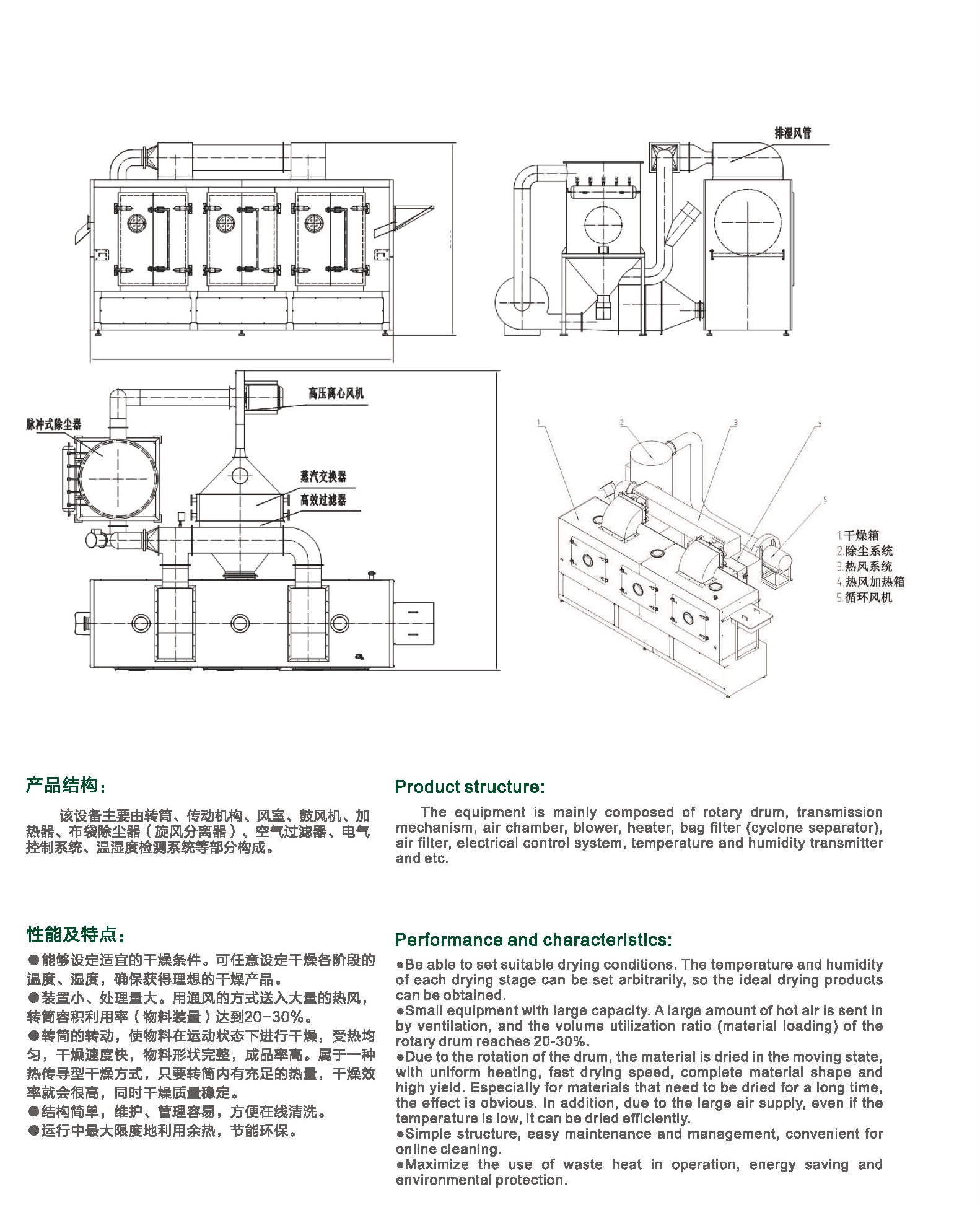

Product structure:

The equipment is mainly composed of rotary drum, transmission mechanism, air chamber, blower, heater, bag filter (cyclone separator), air filter, electrical control system, temperature and humidity transmitter and etc.

Application:

Drying machine factory direct price—It is used for drying herbal pill, food ball, chemical ball.




Advantages：

Pharmaceutical drying machine factory china—Be able to set suitable drying conditions. The temperature and humidity of each drying stage can be set arbitrarily, so the ideal drying products can be obtained.

• Small equipment with large capacity. A large amount of hot air is sent in by ventilation, and the volume utilization ratio (material loading) of the rotary drum reaches 20‑30%.

• Due to the rotation of the drum, the material is dried in the moving state, with uniform heating, fast drying speed, complete material shape and high yield. Especially for materials that need to be dried for a long time, the effect is obvious. In addition, due to the large air supply, even if the temperature is low, it can be dried efficiently.

• Simple structure, easy maintenance and management, convenient for online cleaning.

• Maximize the use of waste heat in operation, energy saving and environmental protection.

Operation and maintenance:

Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
User power configuration ≥20KVA
This equipment requires one person to install and the installation time is 24 hours.

Warning: Discontinue use if damaged.

About Us:

We are a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.

Certifications & Qualifications:

The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.

▲IP Management System Certification	▲ISO 9001:2015 Quality Management	▲Credit Rating Certificate

Exhibition:

As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.

Package or Logistics:

Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.

Lead Times:

Normal time: 40 working days.
Urgent Service: 30 working days.

Return Policy:

We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
