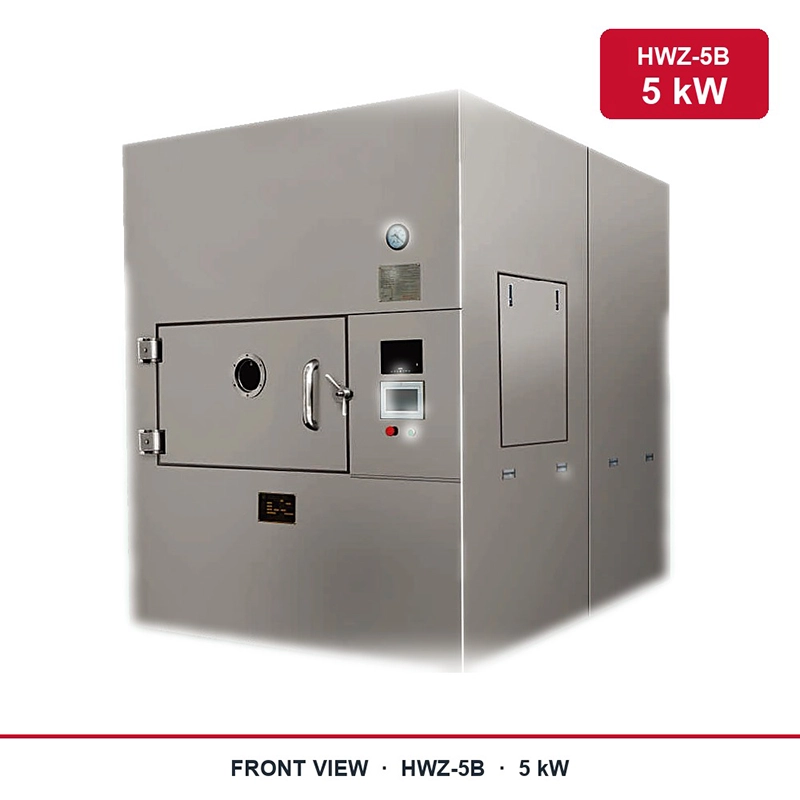

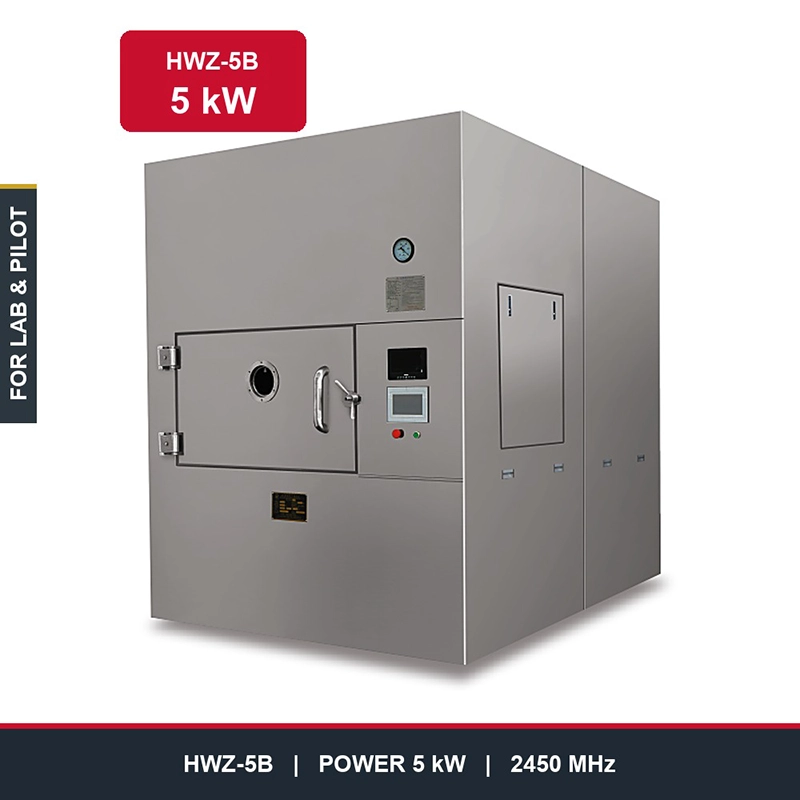

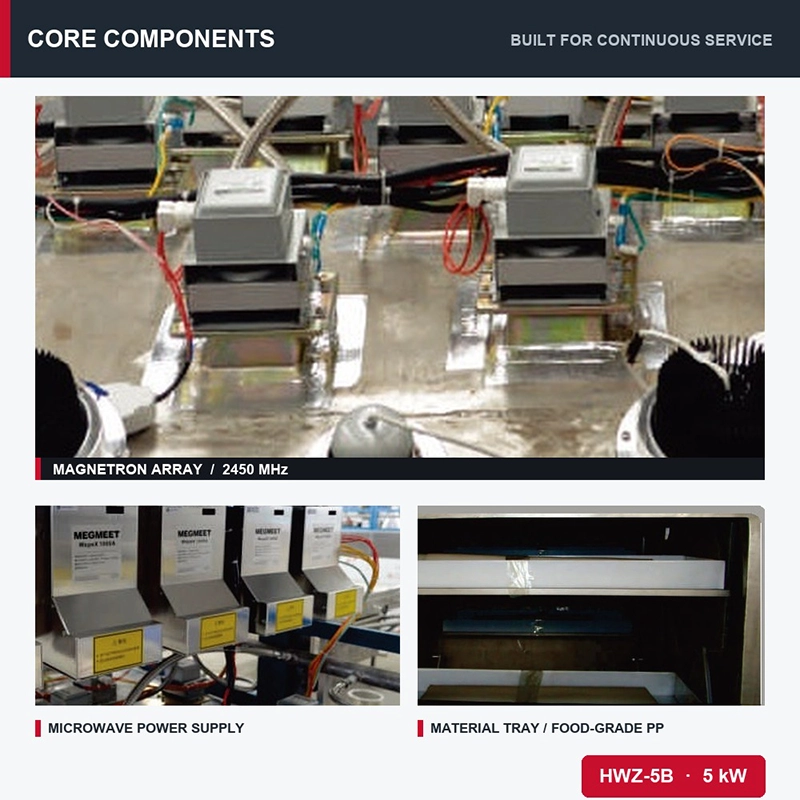

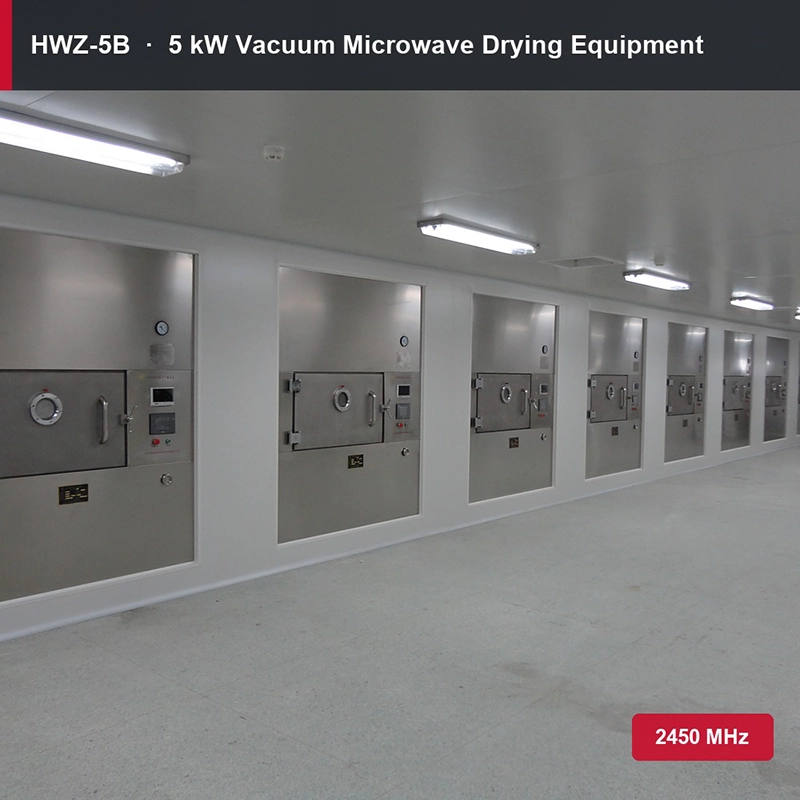

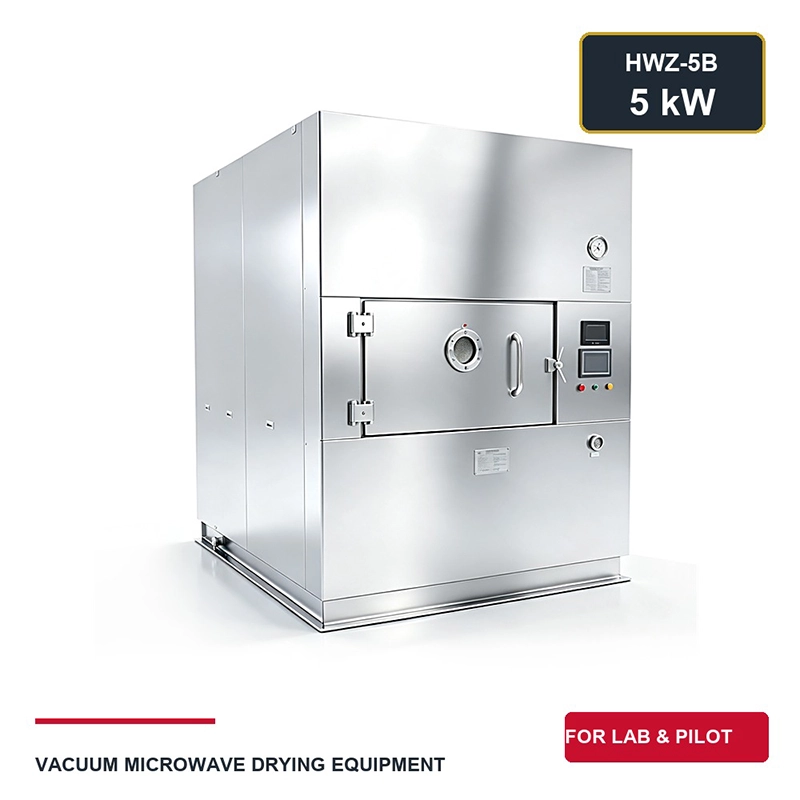

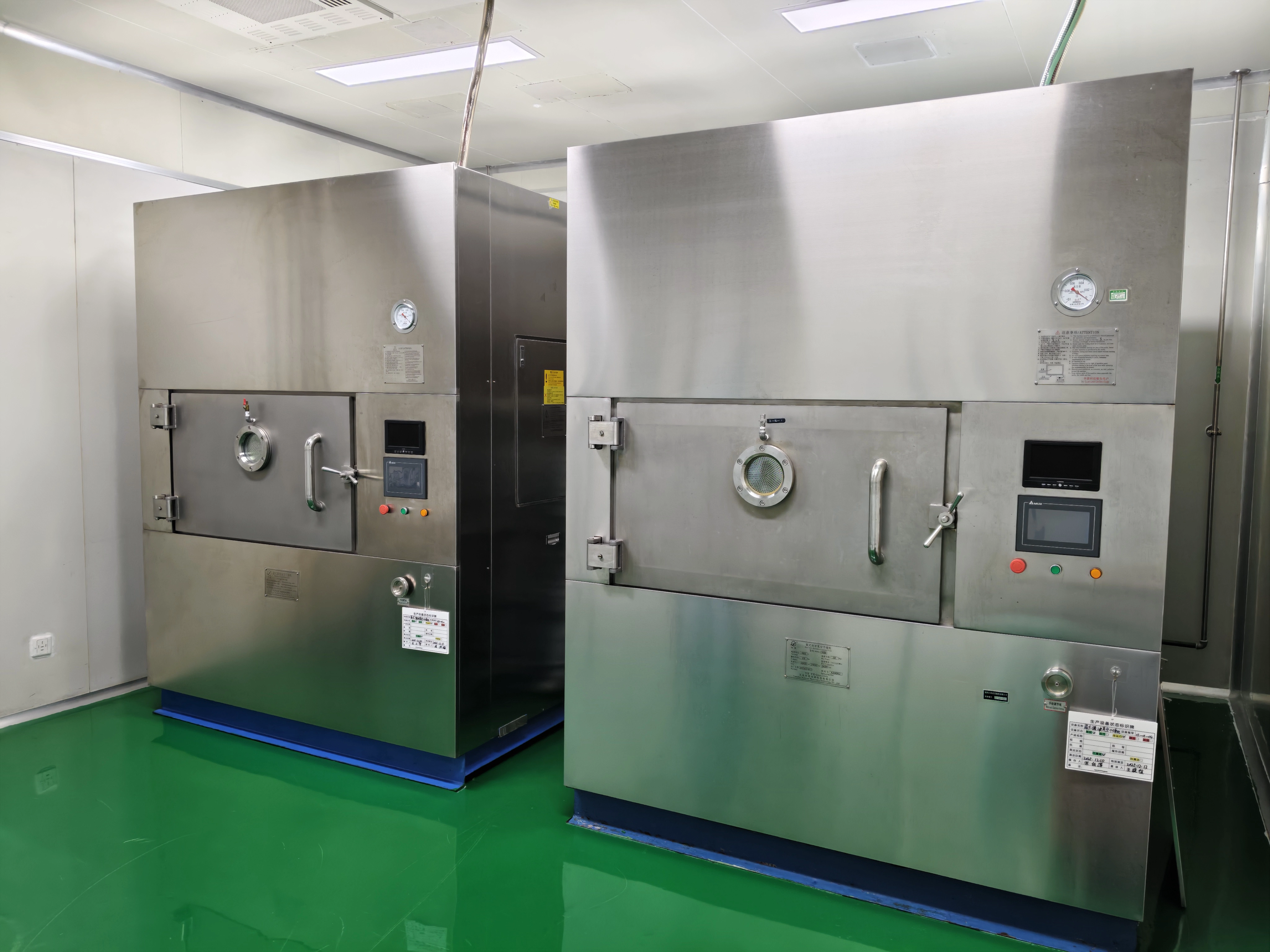

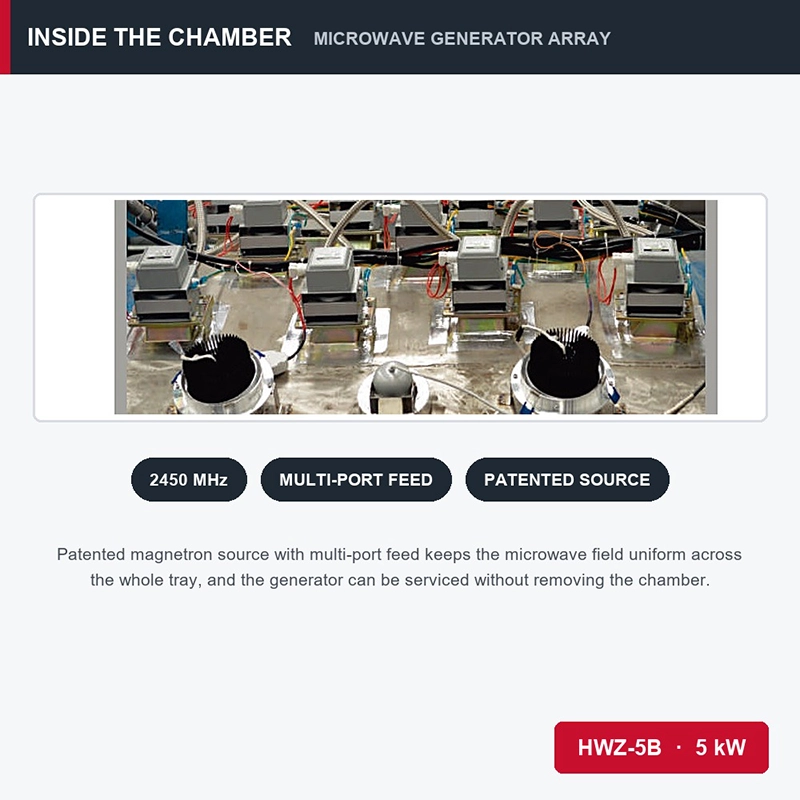

Continuous conveyor drying machine china—The HWZ-5B is the smallest model in the HWZ vacuum microwave drying series, designed for laboratories, pilot plants and small batch production. It combines 2450MHz microwave heating with a vacuum environment, so water evaporates at 40–60°C and heat-sensitive actives survive intact. With 0.75㎡ of auxiliary material area and a 1380×1275×1875mm footprint, it fits into a standard laboratory while delivering repeatable, documented drying cycles. Five Samsung magnetrons with independent ME GMEET power supplies allow stepless power modulation, and the Panasonic PLC with a Delta touch screen stores recipes so every batch follows the same power and vacuum profile. It is the preferred entry point for R&D teams validating a formulation before scaling to 10–30kW production units.

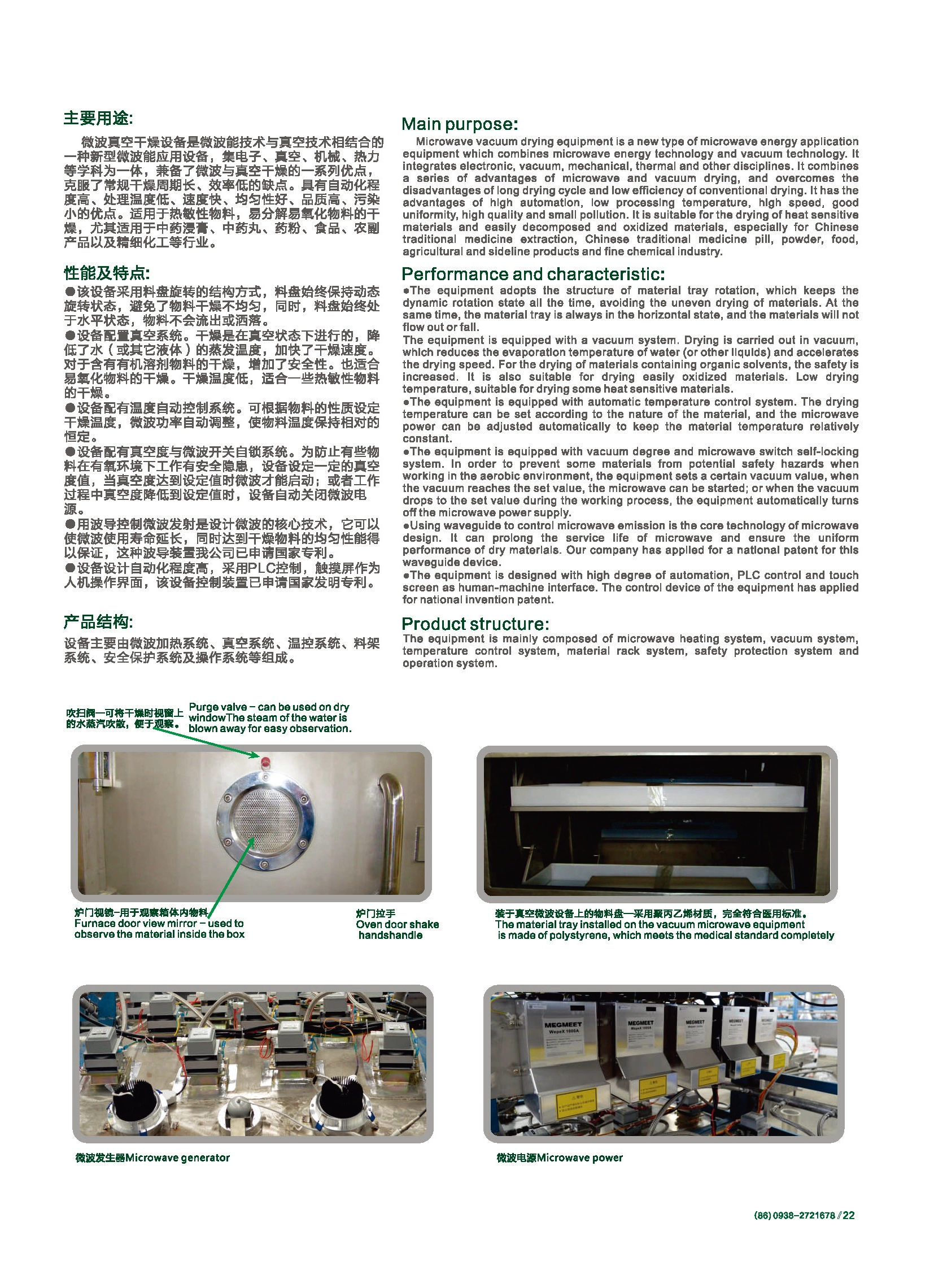

Product structure:
The equipment is mainly composed of microwave heating system, vacuum system, temperature control system, material rack system, safety protection system and operation system.The equipment is mainly composed of microwave heating system, vacuum system, temperature control system, material rack system, safety protection system and operation system.

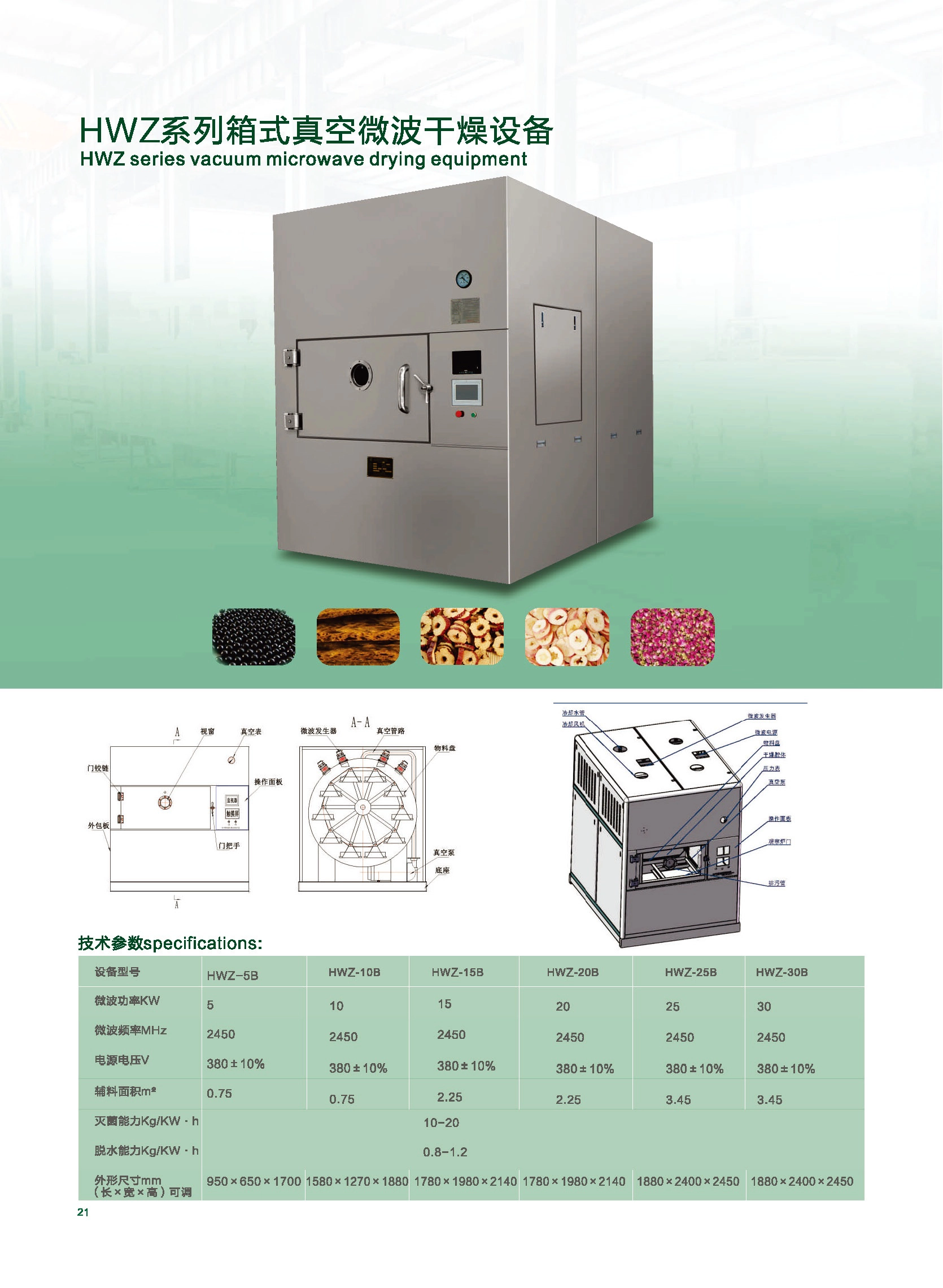

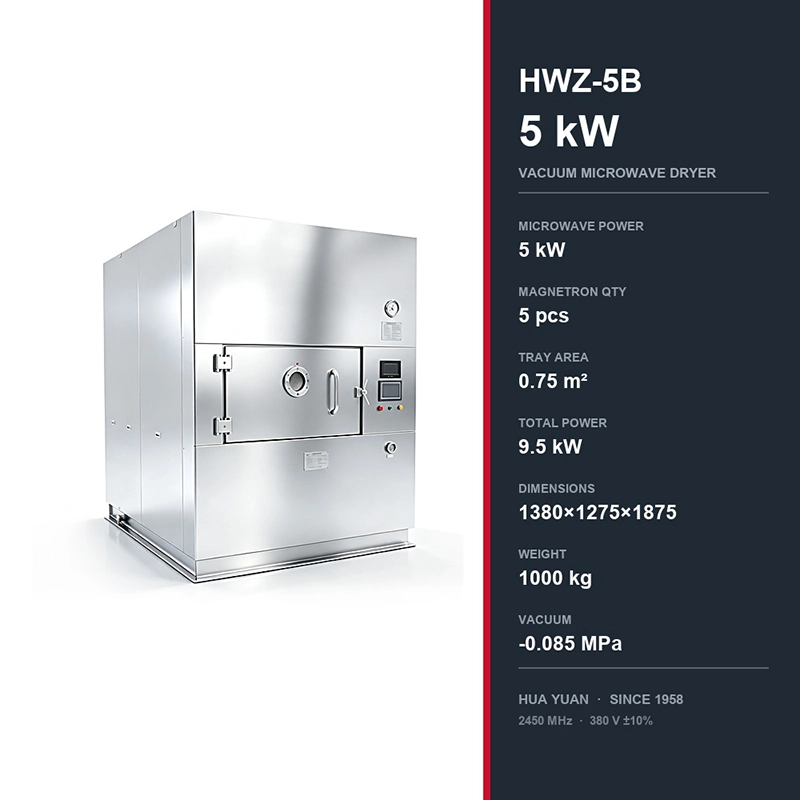

Product Specification：
|
Item |
Specification |
|
Model |
HWZ-2B |
|
Microwave Power |
5KW |
|
Microwave Frequency |
2450MHz |
|
Supply Voltage |
380V±10% |
|
Auxiliary material area |
0.75㎡ |
|
Sterilization Capability |
10-20kg/kW·h |
|
Dewaterability |
0.6-1.0kg/kW·h |
|
Overall dimension |
1380×1275×1875mm |
|
Total power |
9.5KW |
|
Rated current |
20A |
|
Equipment weight |
1000Kg |
|
Vacuum pump |
3.85KW |
|
Cooling method |
Water-cooled |
|
Material trays |
6 pcs (530×245×100mm) |
|
Drive motor power |
0.25KW |
|
User power configuration |
≥14KVA |
|
Noise level |
≤80dB |
|
Ambient requirements |
5–40℃, humidity ≤80% |
|
Vacuum degree (limit) |
-0.085MPa |
|
Chamber material |
6mm stainless steel (round) |
|
Packing |
Export wooden case |
|
Warranty |
One year |
|
Production cycle |
40 days |
|
Export qualification |
Available |
Automatic industrial drying line B2B—It is used for laboratory samples, pilot batches, rare herb extracts, probiotics and enzyme preparations.
Advantages：
Direct price drying equipment supplier—Short drying time and high efficiency, one drying cycle lasts for approximately one hour.
High automation, high speed
Low processing temperature
Good uniformity
High quality and small pollution
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
User power configuration ≥14KVA
This equipment requires one person to install and the installation time is 24 hours.
Warning: Discontinue use if damaged.
