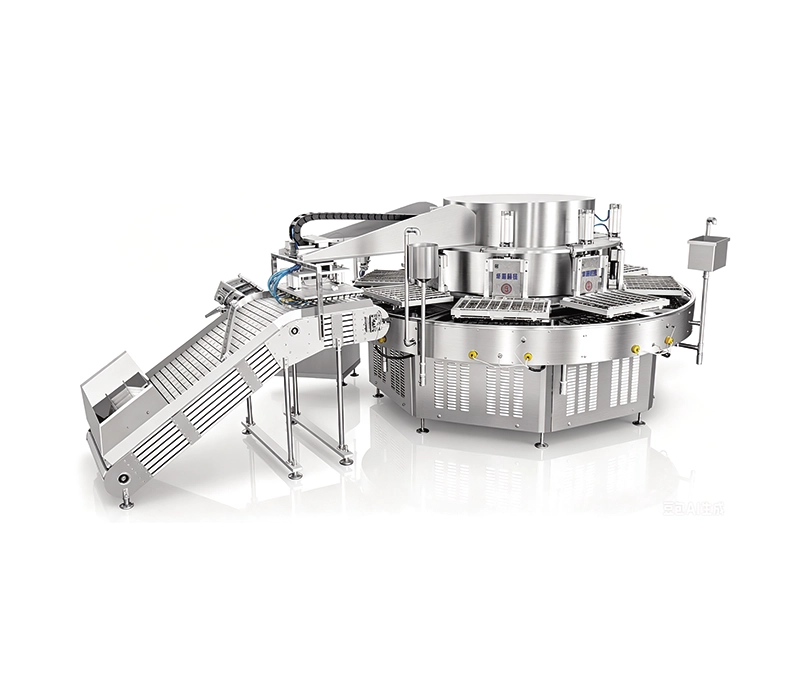

Automatic buckle shell wax sealing machine

Structural characteristics:

A vacuum sucker is used in the shell to protect the appearance of the plastic shell, which has high precision and zero damage to the plastic shell.

Automatic herbal pill machine wholesales in china—It can ensure smooth surface of wax shell and good sealing effect during continuous wax dipping production. After dipping wax, the finished wax shell dipping layer thickness uniform, beautiful appearance. The production capacity and finished product rate are superior to the traditional manual wax dipping to meet the production needs of the majority of users.

The equipment in the production process can easily adjust the external environment caused by water temperature, wax temperature instability phenomenon. If there are special specifications of products, the company can be customized according to the needs of users.

Fuselage adopts beautiful circular structure, covers an area of moderate, space utilization is full.

The fuselage transmission part adopts the Japanese SMC high precision electric cylinder drive; the related inspection electrical component adopts the international famous brand photoelectric switch precision inspection

Working principle：

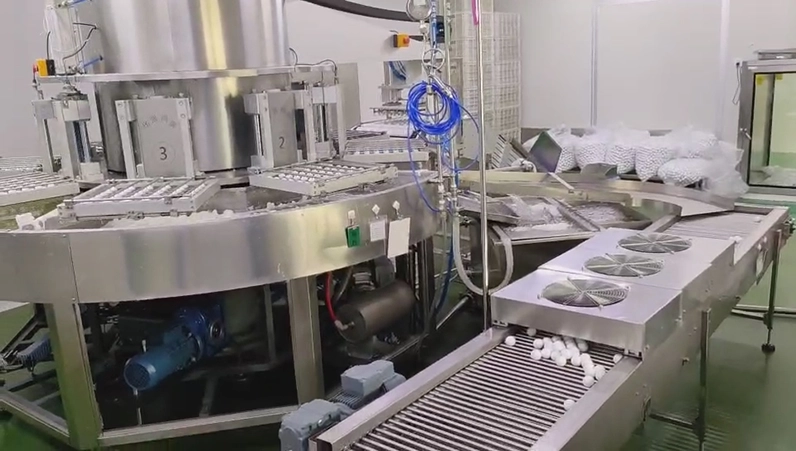

Wholesale price herbal pill making machine—The device is a fully automatic wax dipping machine. First, the plastic shell is arranged by conveying the positioning mechanism, and then the plastic shell is grabbed onto the wax plate by the sucker controlled by the electric cylinder, and the wax plate is driven by the cam intermittent mechanism to make circular motion. During the pause, the cylinder is driven to dip the wax plate up and down in the wax pool to complete the wax dip once, and the wax plate can be dipped several times according to the process requirements, finally the unloading action is completed at the unloading place, the wax shell falls into the pool, The cooling wax shell is removed by the ball fishing machine to complete the whole wax dipping process. This machine can complete automatic continuous shell, cloth shell, dip wax, cooling and discharging process.

Product Specification

Application:

Pharmaceutical herbal pill maker factory china—This machine is mainly used in the packaging lines of traditional Chinese large honey pills.

Operation and maintenance:

Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.

About Us:

We are a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.

Certifications & Qualifications:

The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.

▲IP Management System Certification	▲ISO 9001:2015 Quality Management	▲Credit Rating Certificate

Exhibition:

As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.

Package or Logistics:

Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.

Lead Times:

Normal time: 40 working days.
Urgent Service: 30 working days.

Return Policy:

We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
