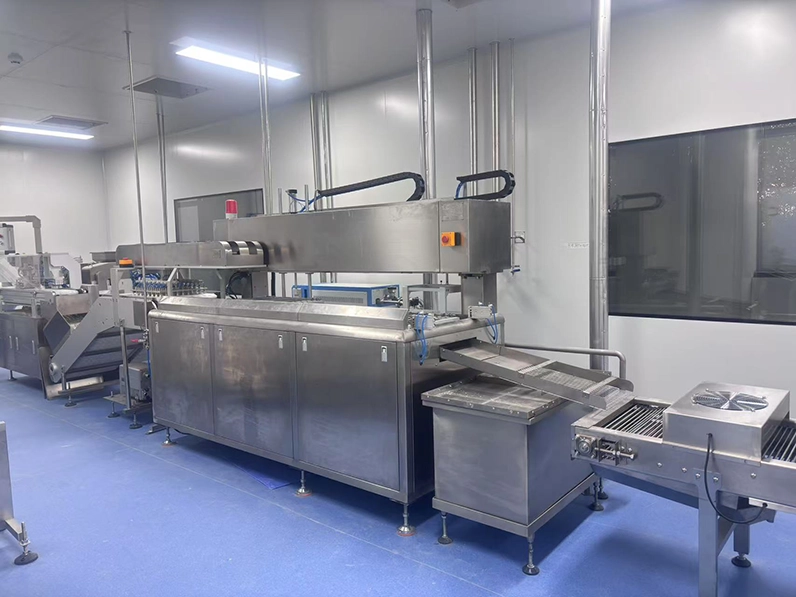

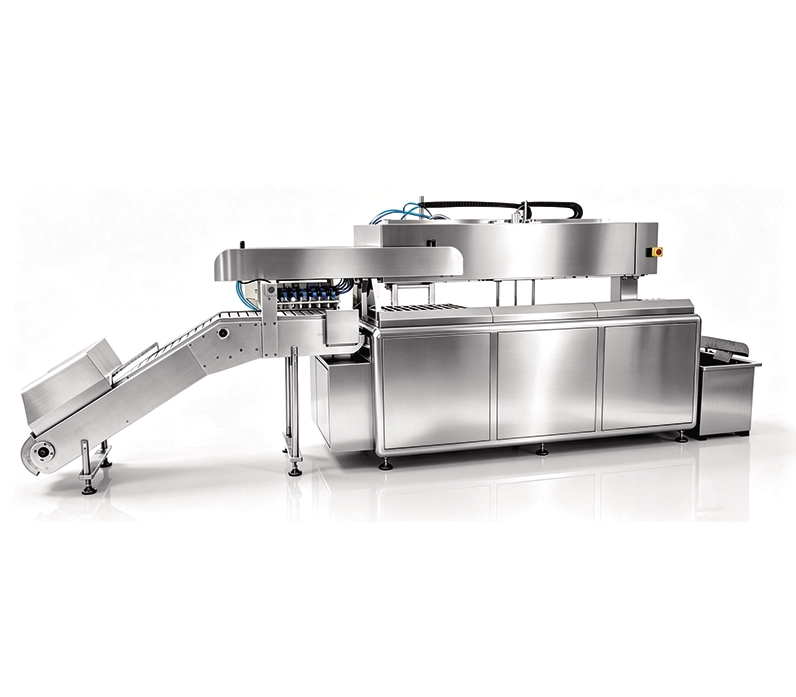

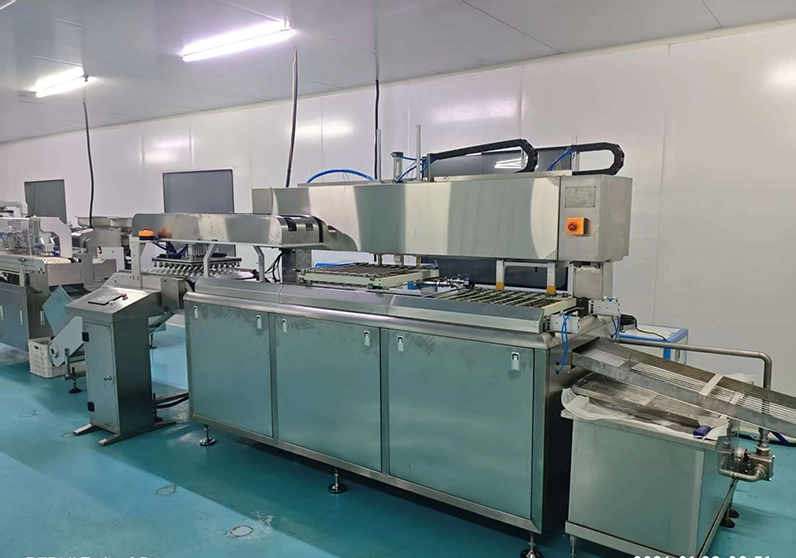

Double arms wax dipping machine

Working principle:

Automatic herbal pill machine wholesales in china—This is a fully automatic wax dipping machine. Firstly, disordered plastic shells with pills fitted inside are conveyed and positioned into spaced locating holes via the conveying positioning mechanism.Then electric cylinder-controlled suction cups grab the pill-containing shells and place them onto the wax dipping tray. Driven by servo system, the tray moves linearly back and forth and pauses briefly at each working station. During the pause, an air cylinder drives the tray to move up and down once in the wax tank to finish one wax dipping cycle. Multiple dipping operations can be performed as required during linear movement.Finally, finished products are unloaded at the discharging position and drop into the water tank for cooling. Cooled shells are discharged through the tank chute to complete the whole process.The machine realizes automatic continuous shell feeding, arranging, wax dipping, cooling and discharging.

Structural characteristics:

Wholesale price herbal pill making machine—Vacuum suction cups are adopted for shell arranging, which effectively protects plastic shells. It features high arranging precision and zero damage to shells.

The wax dipping tray consists of frame and material placing plate. It slides down along guide rods and is positioned by limit pins to prevent wax shells from floating away. It resets upward and opens automatically after wax dipping.

The machine can easily stabilize unstable water temperature and wax temperature caused by external environment. Custom accessories are available for special product specifications.

The machine can easily stabilize unstable water temperature and wax temperature caused by external environment. Custom accessories are available for special product specifications.

Linear body design with moderate floor space and high space utilization rate.

The transmission system adopts full-servo high-precision electric cylinders. World-famous brand photoelectric sensors are used for precise detection.
The most prominent features of this machine are user-friendly humanized design and intelligent control.

Product Specification

Application:

Pharmaceutical herbal pill maker factory china—This machine is mainly used in the packaging lines of traditional Chinese large honey pills.

Operation and maintenance:

Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
