Model: SWG-600 / SWG-450 Production capacity: 200-350kg/h, 150-300kg/h Material: stainless steel Application: Pharmaceutical, food and chemical industry
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
Model: GHLS-1S Production capacity: 50-350kg/h Material: stainless steel Application: Pharmaceutical industry
Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Model: YUJ-10A Productivity: 2~5kg/h Production specification: ¢2~¢10mm Material: stainless steel Application: herbal pill or pellet producing
International distributors seeking a competitive edge can access the automatic herbal pill machine wholesales in china network to expand their market footprint. This channel offers harmonized specifications, intelligent controls, and consolidated shipping to streamline inventory management. Supported by a globally trusted heritage brand, dealers can confidently supply GMP-compliant, high-performance equipment to diverse regional clients.
For continuous, high‑volume production, the automatic suppository production line B2B platform delivers the robust reliability that contract manufacturers require. Integrating advanced thermal control and automated sealing, these systems guarantee batch-to-batch consistency while minimizing downtime. Backed by nearly three decades of manufacturing heritage, Huayuan empowers global enterprises to scale their operations seamlessly without compromising GMP compliance.
International distributors can build reliable portfolios by partnering through the suppository shell machine factory direct channel, which removes intermediaries and gives direct access to Huayuan’s engineering team. This model enables tailored mold geometries, custom control interfaces, and comprehensive validation documentation. Backed by decades of experience, dealers can offer fully supported equipment that meets diverse regional standards.
International distributors looking to equip multiple client facilities will find comprehensive high pressure sterilizer wholesales in china programs at the Xiamen event. By standardizing core components and streamlining volume production, the manufacturer ensures that every unit maintains identical operational tolerances. This scalable supply model allows global partners to confidently meet regional market demands with complete validation documentation.
International distributors can partner with Huayuan as a turnkey suppository production line company, offering clients a single point of accountability from design through commissioning. This integrated approach covers equipment, installation guidance, validation support, and operator training, reducing coordination burden for dealers and their end‑users. Backed by decades of engineering experience, Huayuan helps distributors deliver complete production solutions with full factory backing.
International distributors can strengthen their portfolios through a drying machine factory direct price arrangement with Huayuan, which removes intermediaries and provides direct access to engineering and production teams. This channel supports customised configurations, private labelling, and complete source documentation for regional market requirements. Backed by decades of manufacturing experience, dealers can offer reliable drying equipment with full factory accountability.
Pharmaceutical producers operating continuous sterile lines rely on a high pressure sterilizer manufacturer china with nearly three decades of pressure‑vessel expertise. Huayuan’s autoclaves deliver uniform steam distribution and precise temperature‑pressure regulation, ensuring repeatable cycles that meet strict GMP requirements. With over 1,000 installations worldwide, the company provides the stability and documentation that regulated manufacturing demands.
International distributors can strengthen their portfolios with the wholesale price autoclave machine china model, which combines volume supply with consistent tolerances across multiple units. Huayuan’s direct factory collaboration allows private labelling, tailored documentation, and responsive technical support. Backed by decades of engineering excellence, this channel helps dealers serve diverse regional markets with confidence.
International distributors can work with a suppository production line factory china direct to eliminate intermediaries and gain direct access to Huayuan’s engineering team. This model enables private labelling, tailored documentation, and rapid customisation for regional market requirements. Backed by decades of manufacturing excellence, partners can offer dependable machinery with full factory accountability.
Hospital compounding units and research pharmacies rely on Huayuan as a custom industrial drying machine factory, providing compact, easy‑to‑validate dryers for small‑batch and temperature‑sensitive preparations. Engineers tailor airflow, conveyor speed, and temperature zones to match delicate botanical or chemical materials. Full validation protocols and operator training help clinical sites maintain regulatory compliance and flexible workflows.

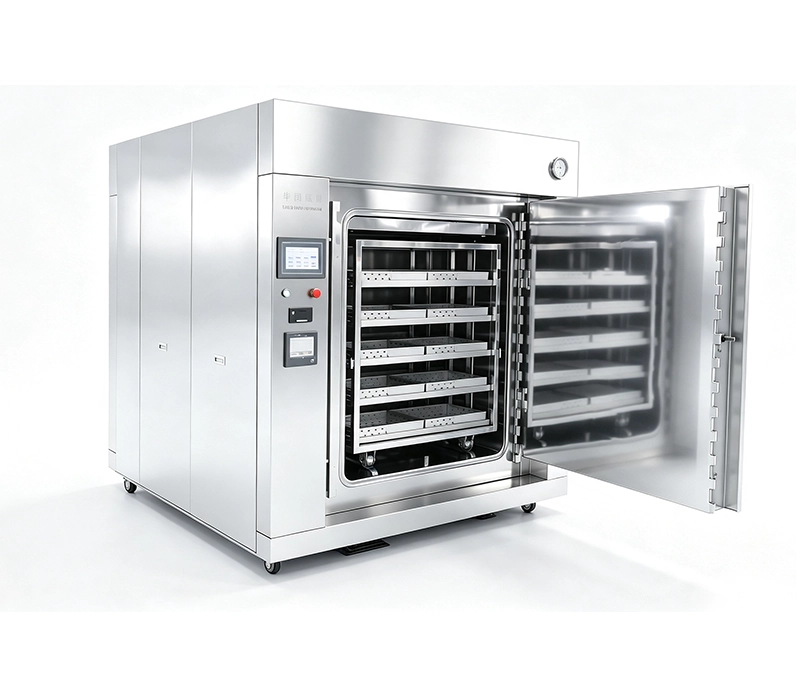

Oem high pressure sterilizer supplier—This series of water bath sterilizer uses superheated circulating water as the carrier of sterilization heating to sterilize articles by water spray. The superheated water is operated in a relatively closed circulation system throughout the operation. The equipment has a series of advantages, such as high thermal efficiency, good temperature uniformity, wide temperature control range and so on. And effectively prevent the secondary pollution in the process of work, supplemented by anti-pressure protection measures.
|
1 |
Model |
YXQ.WF32.750×1050-D |
YXQ.WF32.750×1050-D |
YXQ.WF32.1000×1200-D |
YXQ.WF32.1000×1200-D |
|
2 |
Volume (m3) |
1.2 |
1.5 |
2.5 |
3.6 |
|
3 |
Working pressure(Mpa) |
0.15 |
|||
|
4 |
Design temperature(℃) |
80~136℃ |
|||
|
5 |
Steam source pressure(Mpa) |
0.3-0.6 |
|||
|
6 |
Control source |
AC220/50HZ/3A |
|||
|
7 |
Power source |
AC380V/50Hz/20A |
|||
|
8 |
Power dissipation(Kw) |
2.5 |
2.5 |
4 |
4 |
|
9 |
Water cycle consumption(kg/time) |
1000 |
1200 |
2000 |
3500 |
|
10 |
Water Resources stress(Mpa) |
0.15-0.3 |
|||
|
11 |
Compressed air pressure(Mpa) |
0.5-1.8 |
|||
|
12 |
Dimensions of the sterilization chamber（L×W×H)）mm |
1500×750×1050 |
1900×750×1050 |
2150×1000×1200 |
3000×1000×1200 |
|
13 |
Overall dimensions （L×W×H）mm |
1850×1500×1950 |
2300×1500×1950 |
2510×1740×2100 |
3350×1740×2100 |
|
14 |
Net weight（kg） |
1800 |
2100 |
2700 |
3100 |
Best price high pressure sterilizer—The equipment can be widely used in the pharmaceutical industry for glass bottles, ampoules, plastic soft bags and other liquids to carry out high and low temperature sterilization operations, but also for food industry for a variety of sealed packaging, drinking liquid, canned food to carry out high and low temperature sterilization operations.
Advantages：
The main body is horizontal rectangular structure; The inner chamber is made of high quality 304 stainless steel material, the inner wall surface is polished, easy to clean, corrosion resistant and durable. Manufacture class I pressure vessel products to strict quality and safety standards, and equipped with standard GMP verification interface.
The top of the sterilization chamber is equipped with a unique design of water distribution tray spray device, which can ensure that the temperature replacement is uniform in the heating process and cooling process, without dead Angle.
Advanced heat replacement system, so that the heating and cooling process is rapid, high efficiency.
Bulk order high pressure sterilizer—Sealing door adopts clamps tooth meshing structure, electric lifting switch, compressed air anti-sealing, and equipped with safety interlocking device, manual opening device, double door interlocking device. The door body is safe and reliable, flexible and labor-saving, easy to operate.
The sealing ring selection of good elasticity, resistant to 200℃ of silicone rubber material, durable.
Double door seal strictly isolate bacteria area and sterile area, effectively prevent secondary pollution in the interval.
On the machine selection touch man-machine interface, intuitive working state, easy to operate; The industrial programmable controller is used to control the whole working process automatically, which is accurate and reliable, and the required parameters and operation files are recorded and printed in real time.
Multiple safety conditions are set to ensure reliable operation of the equipment.
With automatic fault retrieval function and prompt function.
The main parts are selected international famous brands, the optimal configuration to ensure the safety, reliability and operability of sterilization equipment.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
We are a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
