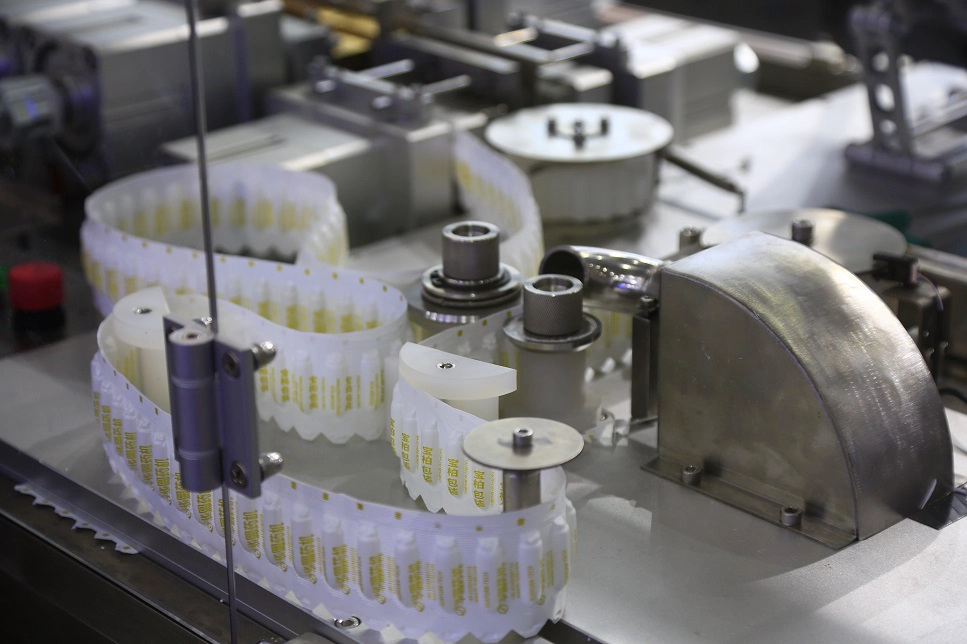

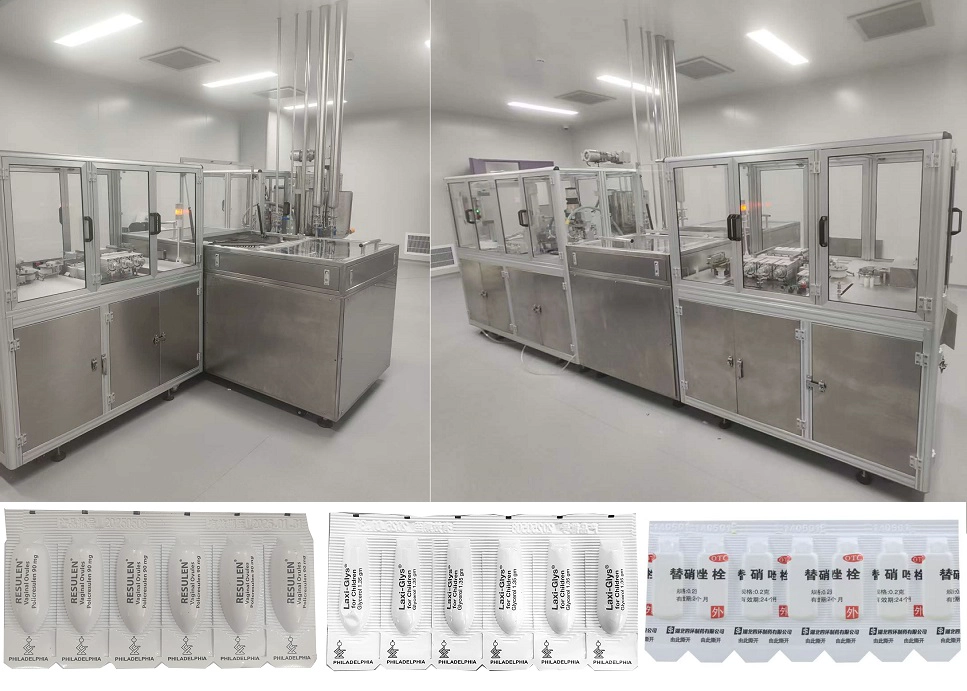

Suppository equipment is specialized industrial equipment used by pharmaceutical factories or hospital pharmacies for the production of suppositories. This equipment can form the required suppository shell types (torpedo-shaped, duckbill-shaped, bullet-shaped, etc.) from rolls of packaging materials through molds. The well-mixed medicinal liquid is automatically filled into the shells through program control, and then cooled to solidify the medicinal liquid. Finally, the suppositories are produced after sealing, shaping, batch number marking and cutting.
1. Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2. Filling:

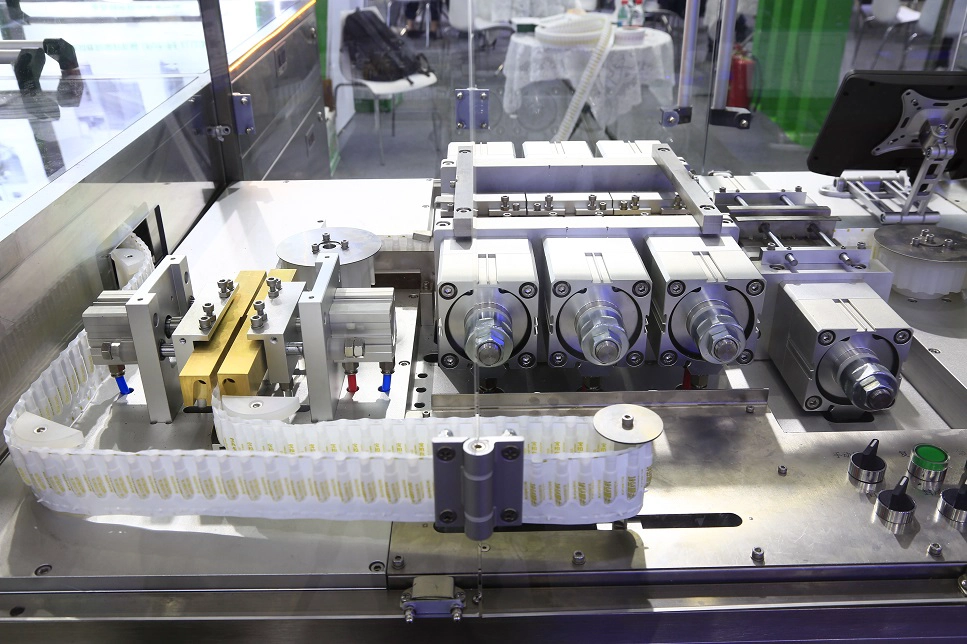

7 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the drug in a uniform state, material barrel pump into the drugs by the high precision of filling head, filling a residual drugs through the other end of the cycle to the raw material filling barrel again next time.
3. Cooling:
Drugs into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.

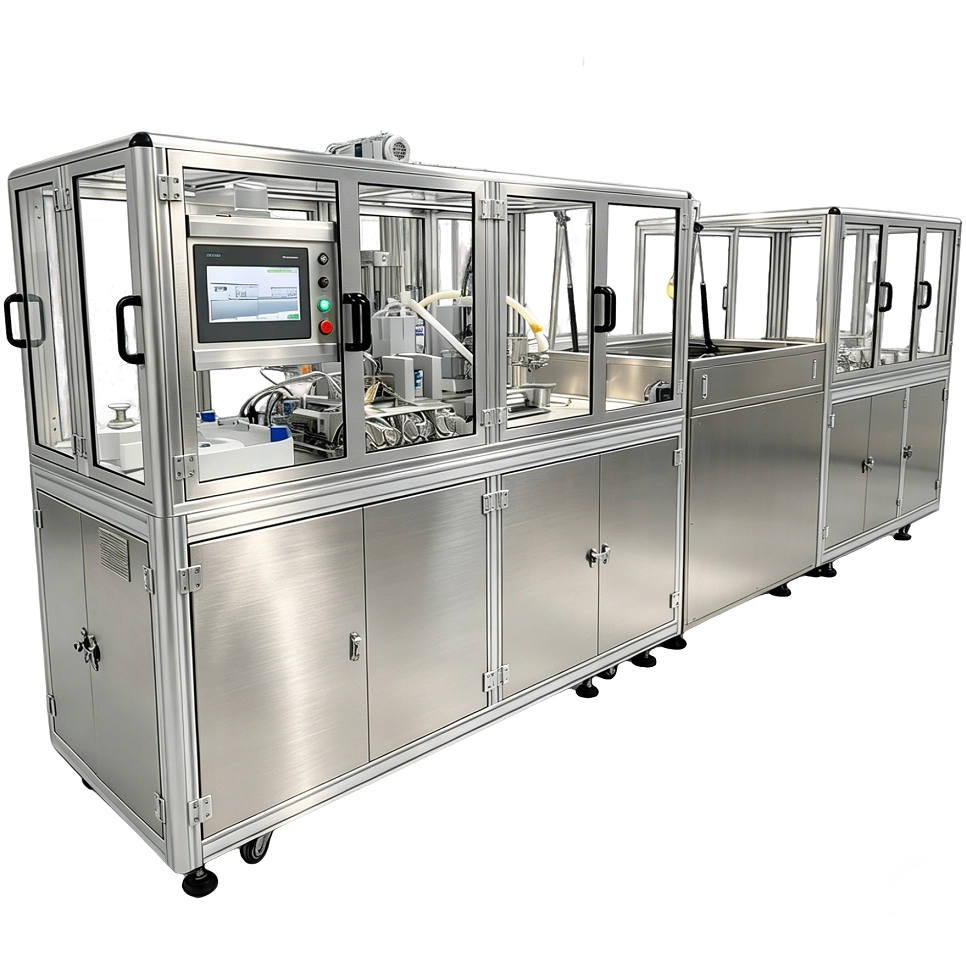

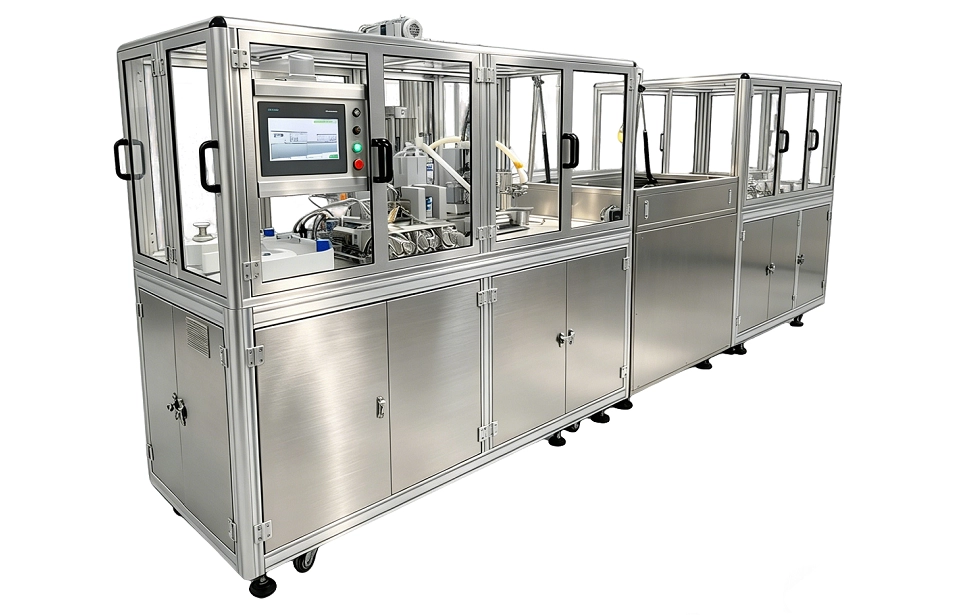

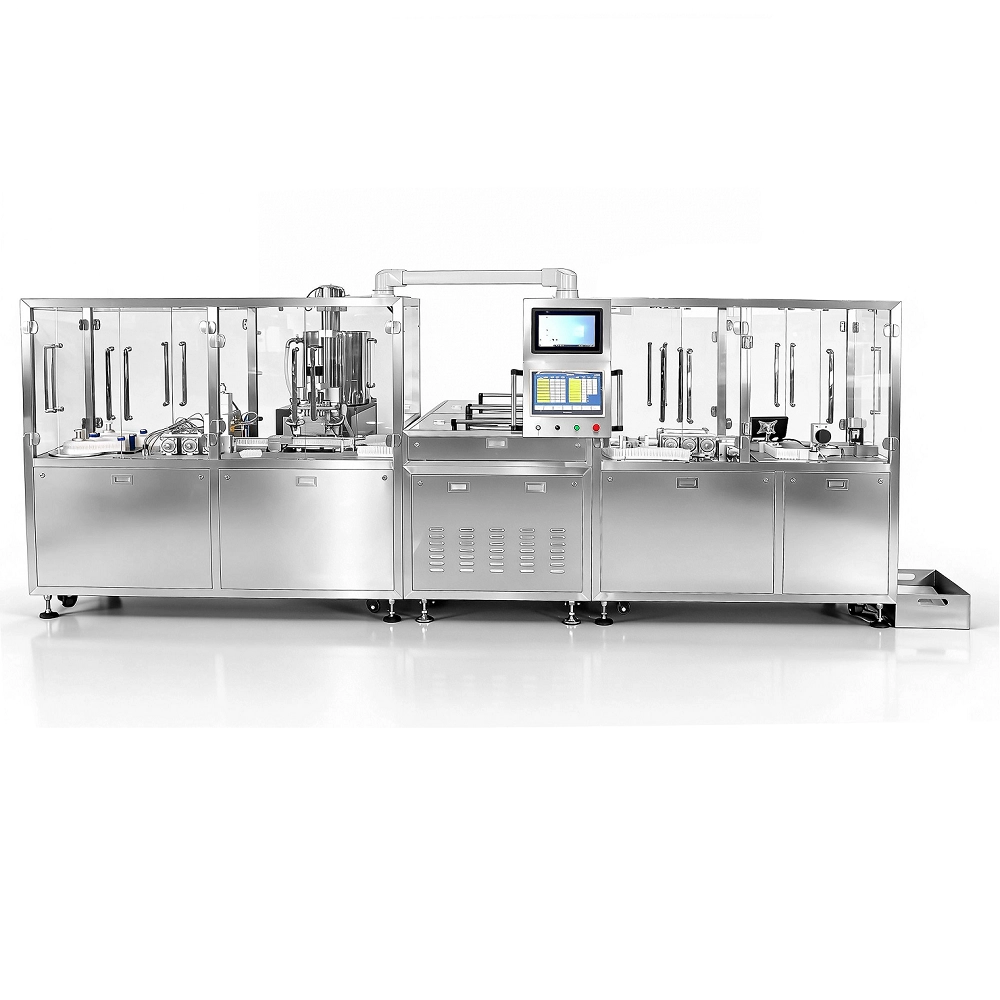

| Equipment name | Full-automatic suppository machine | Equipment model | SJ-7 |
| Capacity | 10000~13000 granulations per hour | Equipment weight | 1890Kg |
| Suppository form | Bullet form, torpedo form (space between 17.4mm) | External dimension（L×W×H） | 4800×2200×2050（mm） |
| Rated current | 45A | Supply frequency | 50 Hz |
| Rated voltage | 380 V | Usage、service dimension（L×W×H） | 6800×4000×2600 mm |
| Whole power | 16KW | Material of equipment surface | stainless steel |
| Equipment noise | ≤80db | Material in contact with the product | Stainless steel |
| Installation and commissioning requirements：（number of personnel、installation time、auxiliary equipment、materials ect.） | |||
| This equipment need one person to install，the installation time is（ ）hours，During the test run, the materials required for the test should be provided, but a vehicle unloading tool should also be provided. | |||
| Equipment factory (company) name | Tianshui Huayuan Machinery Technology Co., Ltd. | ||
| Export qualification | Yes | Equipment packing form | Wooden case |
| Production time | 45days | Warranty period | 1 year |
Advantages:
Using inset filling,accurate in position, non-dribbling drug, non-hanging wall, high precise in counting.
Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.
Using PLC written formula control and industry grade person-machine inerface operation , possessing characteristics of high degree autoimmunization convenience in adjustment high precise thermo-control reliability in action and steady in running etc.
Having big volume storing fluid vessel, laying homoeothermic stirring and fluid surface auto control assembly.
Relieving worker's physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.
One side operation and better sight.
Application:
It is used for pharmaceutical factories or hospital pharmacies for the production of suppositories.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
Tianshui Huayuan Shangyu Technology Co., Ltd. is a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:

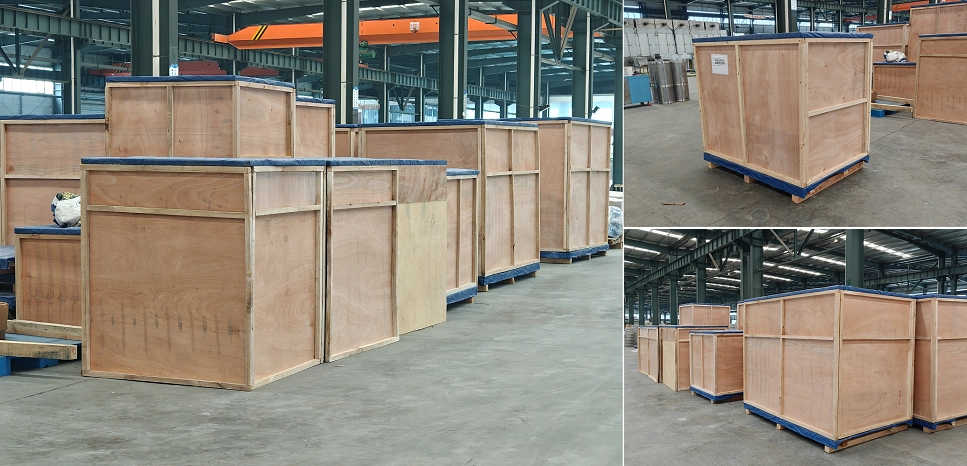

Package: export wooden case
