Model: YUJ-16C Production specification: 1~6g (¢3~¢18mm) Production efficiency: 5~90kg/h Material: stainless steel Application: herbal pill or pellet producing
Type: tunnel drying machine Microwave Power: 15~120kw Microwave Frequency: 2450±50MHz Supply Voltage: 380v Drying method: microwave
Model: YUJ-16A/B Productivity: 5~50kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Type: Vacuum microwave Microwave Power: 5KW/10KW/15KW/20KW/25KW/30KW Microwave Frequency: 2450MHz Supply Voltage: 380v±10% Auxiliary material area: 0.75/2.25/3.45㎡
Model: YUJ-17A/B Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Model: SWG-600 / SWG-450 Production capacity: 200-350kg/h, 150-300kg/h Material: stainless steel Application: Pharmaceutical, food and chemical industry
Model: YUJ-17BL Productivity: 20~180kg/h Production specification: ¢3~¢12mm Material: stainless steel Application: herbal pill or pellet producing
Capacity: 3000~4000 pcs/h Filling range: 0.5~5g Dose error: ±2% Suppository shape: bullet-shaped, torpedo-shaped,duckbill-shaped ect(space between 17.4mm) Air pressure: 0.6Mpa
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 136℃ Material: SS30408 Sterilized material: clothing, dressings , instruments, tools and utensils ect.
Volume: 1.2m³ Design pressure: 0.245MPa The highest working tempreature: 134℃ Material: SS30408 Sterilized material: medicine powder, coffee bean, spice, grain fruit slices ect.
International distributors value the herbal pill making machine fast delivery capability, which combines streamlined order processing, strategic component inventory, and coordinated logistics. This responsiveness enables dealers to meet urgent client demands without compromising Huayuan’s rigorous quality checks or complete documentation. Backed by decades of manufacturing excellence, the company helps distributors build lasting trust across diverse regional markets.
Enterprises outside the pharmaceutical sector – producing supplements, catalysts, or pellets – benefit from adaptable, high‑throughput machinery. Huayuan’s high speed herbal pill making machine can be configured with stainless steel contact parts and adjustable parameters for abrasive or sticky materials. Rugged construction and easy‑to‑clean surfaces minimise downtime and maximise productivity. Three decades of cross‑sector experience ensure durable, low‑maintenance performance in demanding environments.
Huayuan’s nearly thirty‑year manufacturing heritage is reflected in its herbal pill making machine factory direct model, which gives large producers direct access to the engineering team for customisation and technical support. This channel ensures complete build records, validation documentation, and consistent quality across high‑volume runs. With over 1,000 installations worldwide, the company delivers the scalability and reliability that major drug producers require.
Huayuan’s nearly thirty‑year manufacturing heritage is reflected in the industrial herbal pill making machine B2B, a heavy‑duty platform engineered for continuous high‑volume output with precision compression and intelligent controls. Pharmaceutical enterprises and contract manufacturers benefit from reduced downtime, consistent pill weight and hardness, and long‑term technical partnership frameworks. With over 1,000 installations worldwide, this B2B solution delivers the scalability and operational reliability that major drug producers require.
Huayuan, with nearly three decades of manufacturing heritage, delivers the automatic herbal pill making machine factory china to meet the rigorous demands of high‑volume drug production. These fully integrated lines feature intelligent controls and real‑time monitoring, ensuring consistent pill weight and dissolution while maintaining strict GMP compliance. By minimising manual intervention, the equipment supports continuous operation and reliable batch‑to‑batch uniformity for global pharmaceutical enterprises.
Global drug producers seeking consistent quality and technical depth will find a trusted partner in Huayuan, a renowned herbal pill making machine manufacturer China with over thirty years of process expertise. Their machines handle diverse herbal extracts with precision granulation and gentle compression, ensuring uniform pill weight and dissolution across high‑volume runs. With more than 1,000 installations worldwide, Huayuan delivers the engineering robustness and reliability that large‑scale production demands.
Global drug producers operating high‑volume lines rely on the high speed herbal pill making machine to deliver exceptional throughput while maintaining the gentle handling essential for preserving active botanical ingredients. Optimised compression cycles, precision tooling, and intelligent controls ensure uniform pill weight and dissolution across millions of units, even under 24/7 operation. With over 1,000 installations worldwide and three decades of process expertise, Huayuan provides the velocity and reliability that large‑scale production demands.
Global drug producers operating round‑the‑clock production lines rely on the industrial herbal pill making machine B2B, a heavy‑duty platform engineered for continuous high‑volume output with advanced feeding, precision compression, and intelligent diagnostics that minimise unplanned downtime. Huayuan’s decades of process expertise ensure consistent pill weight, hardness, and dissolution across millions of units, while comprehensive technical support and training programmes facilitate seamless integration into existing manufacturing campuses. With over 1,000 installations worldwide, this B2B solution delivers the operational robustness and scalability that major pharmaceutical enterprises demand.
Global drug producers seeking consistent quality and technical depth will find a trusted partner in Huayuan, a renowned herbal pill making machine manufacturer China with over thirty years of process expertise. Their machines handle diverse herbal extracts with precision granulation and gentle compression, ensuring uniform pill weight and dissolution across high‑volume runs. With more than 1,000 installations worldwide, Huayuan delivers the engineering robustness and reliability that large‑scale production demands.
Global drug producers with continuous, high‑volume operations rely on the industrial herbal pill making machine B2B, a robust platform engineered for 24/7 performance with advanced feeding, precision compression, and intelligent controls that minimise downtime. Huayuan’s decades of process expertise ensure consistent pill weight, hardness, and dissolution across millions of units, while comprehensive technical support and training programmes facilitate seamless integration into existing production lines. With over 1,000 installations worldwide, this B2B solution delivers the scalability and operational reliability that major pharmaceutical enterprises demand.

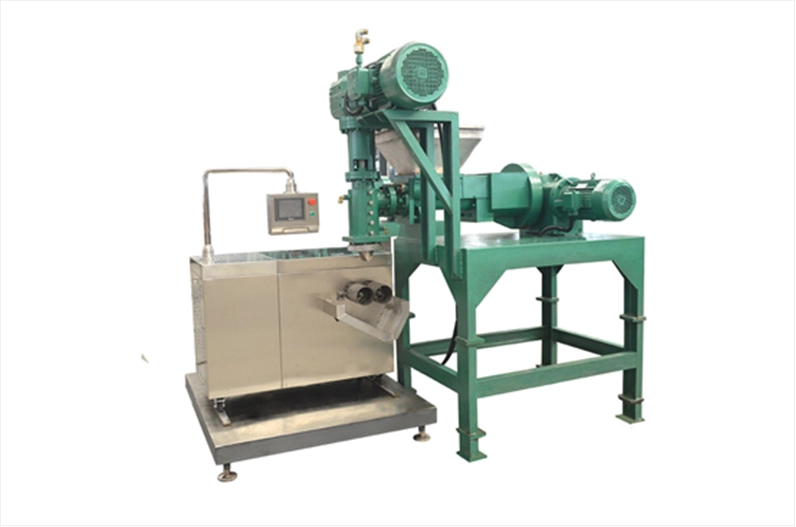

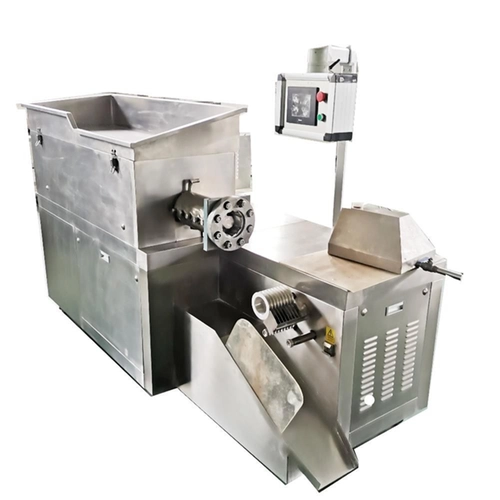

Equipment Composition:
1.Suppository shell making machine manufacturer china—Feeding System: Composed of feeding hopper, reducer, feeding screw, sealing sleeve, transmission shaft, self‑aligning roller bearing, etc.
2. Strip Extrusion System: Composed of reducer, coupling, thrust ball bearing, extrusion screw, cooling system, etc.
3. Pellet‑rubbing System: Composed of pellet‑rubbing cutter mechanism, brush, reducer, etc.
4. Detection System
5. Operation & Control System
Working principle：
1.Custom suppository shell making machine—Feed the mixed or kneaded materials into the hopper. The feeding screw conveys materials to the strip‑extruding propeller for extrusion, producing 6‑12 strips of identical specifications. These strips directly enter the pellet‑forming cutters and are rapidly cut and rubbed into uniformly‑sized spherical pellets.
2. The equipment can extrude 1‑12 strips in one operation.
3. The whole machine adopts horizontal side‑screw feeding and vertical strip‑extruding & pellet‑rubbing structure.
4. The hopper features modular design for easy installation and maintenance.
5. A pressure‑relief structure is fitted at the axial transmission position of the hopper. It releases internal extrusion pressure and prevents water seepage from damaging bearings. An oil‑free self‑lubricating structure is also applied.
6. The semi‑circular R‑shaped pellet‑rubbing cutters are developed and manufactured with years of practical experience, which play a vital role in guaranteeing the roundness of finished spherical pellets.
7. The pellet‑rubbing cutters are made of 45# steel with QPQ surface treatment for outstanding wear resistance and long service life.
8. A built‑in small tool cabinet inside the machine provides storage space for cleaning and maintenance tools.
| Model | LDJ-100 |
| Production specification | ¢3~¢10mm |
| Production efficiency | 100~200kg/h |
| Total motor power | 18.5kw |
| Power supply | 380V 50Hz |
| Weight | 2500kg |
| Overall dimensions | 4000×3000×2721mm |
| Remark | Without touch screen |
1.Increase production capacity and effectively reduce manual intervention during pellet‑rubbing process;
2.Effectively extend the service life of the extrusion screw;
3.Short processing time for strip extrusion and ball forming. Since the gravity direction is consistent with the strip‑out direction, product quality is improved;
4.Excellent cooling performance.
This molecular-sieve catalyst ball-making machine is widely used in petrochemical, coal-chemical, gas separation & purification, environmental protection and fine-chemical industries. It produces spherical molecular-sieve catalysts, catalyst carriers and adsorbents for oil refining, hydrocarbon conversion, PSA gas separation, waste-gas treatment, as well as lab R&D for new-material samples.
Operation and maintenance:
Environmental temperature requirements range 5°C to 40°C.
Environmental humidity requirements range ≤80 %
Warning: Discontinue use if damaged.
About Us:
Tianshui Huayuan Shangyu Technology Co., Ltd. is a diversified enterprise specialized in the integration of R&D, manufacturing, sales and technical services. With nearly 30 years of expertise in the pharmaceutical machinery industry, our equipment is also widely applied to food machinery, chemical machinery and agricultural machinery. Our core products cover TCM pill making equipment, full-automatic suppository filling and sealing production lines, dryers, medical sterilization equipment, chemical pelletizers and other related equipment.
Certifications & Qualifications:
The company has obtained intellectual property certification and AAA Enterprise Credit Rating Certificate, and been granted 25 patents in total, including 5 invention patents. We have also passed ISO9001 International Quality Management System Certification.
Including: ISO 9001:2015 Quality Management | ISO 14001 Environmental Management | ISO 45001 Occupational Health & Safety | High-Tech Enterprise Certificate | IP Management System Certification | CE Certification (selected models) | Certificate of Conformity | Equipment Test Report | GMP Compliance Statement etc.
 |
 |
 |
| ▲IP Management System Certification | ▲ISO 9001:2015 Quality Management | ▲Credit Rating Certificate |
Exhibition:
As a council member of China Pharmaceutical Equipment Industry Association, the company adheres to the mission of Smart Pharmaceutical Technology, Seamless & Efficient Production. To date, we have supplied premium solutions and equipment to over 1,000 pharmaceutical enterprises. Our reliable quality and excellent service have earned high reputation worldwide. The brand "Huayuan" has established itself as a renowned name in China’s pharmaceutical machinery sector.
Package or Logistics:
Package: export wooden case
Shipping Methods: Ocean freight or railway traffic.
Incoterms: We primarily quote EXW factory or FOB (Shanghai, Ningbo) Port.
Lead Times:
Normal time: 40 working days.
Urgent Service: 30 working days.
Return Policy:
We provide a free ONE YEARS LIMITED WARRANTY, if need maintenance, please follow the below step:
Step 1) Contact us with this website email or contact salesman directly.
Step 2) Provide as much detail as possible about the problem you are having.
Step 3) Provide photos or videos of damaged area.
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
